68 | Chapter 2: Installation
Install Tubing and Manifolds for Syringe Dispenser
For each dispense pump, a set of two tubes with check valves and two supply
bottles are provided. The 32-tube dispense manifolds also ship with an optional
inline filter.
n The supply bottles have Luer fittings. Finger-tighten only!
l Place the supply bottles on the same horizontal plane as the instrument. This
ensures optimum pump performance.
l Make sure the tubing is not crimped during installation.
Perform these steps twice, first for Syringe A and then for Syringe B:

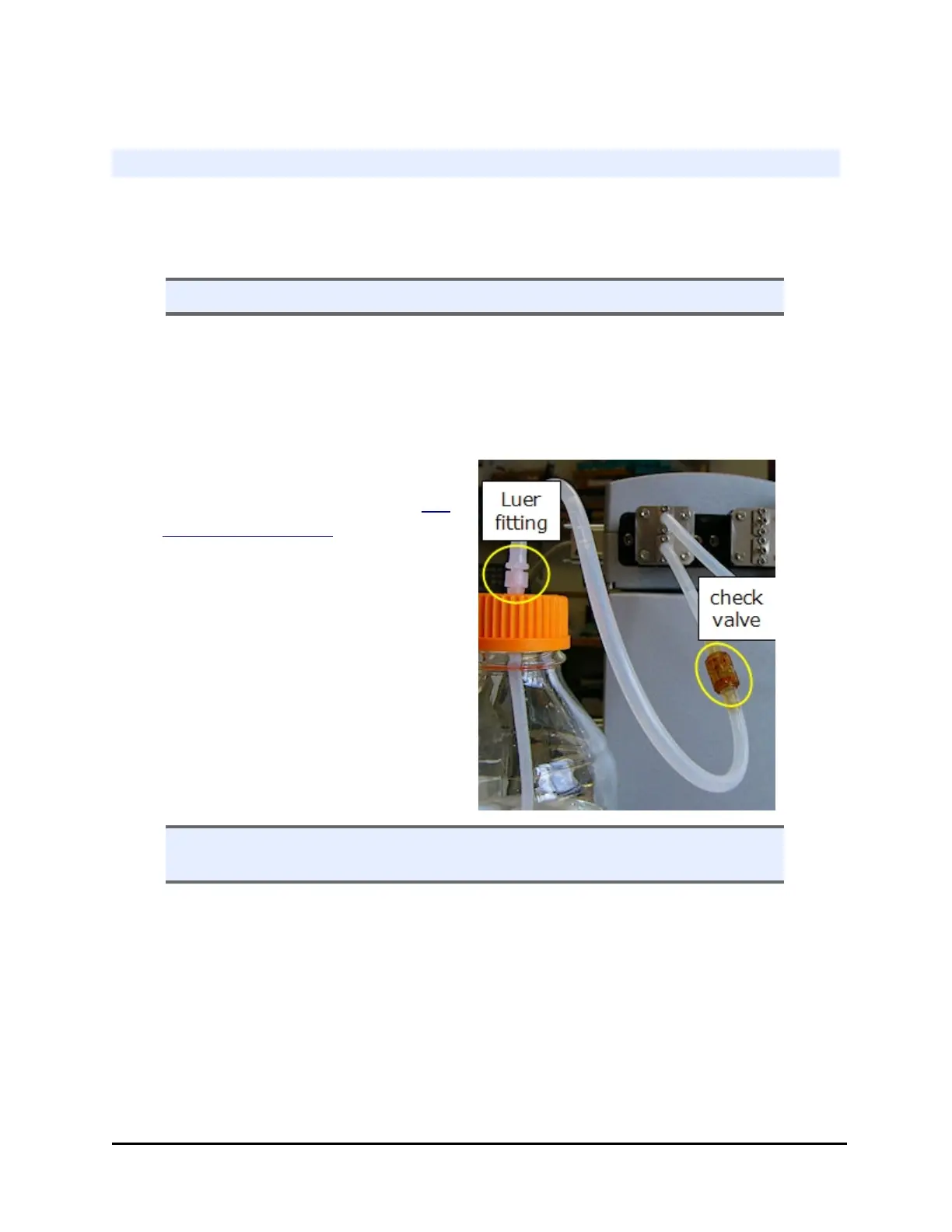

1. First install the inline filter for 32-
tube dispensers, if applicable, (as
described on page 71). Locate the
tubing with a Luer fitting on one
end. Gently screw the Luer fitting
into the top of the supply bottle.
Finger-tighten only.
2. Attach the other end of the tubing
from the supply bottle to the bottom
port of one of the Syringe pumps.
n Make sure the flow-direction arrows point in the direction that the fluid moves.
MultiFlo™ FX Multi-Mode Dispenser
