Set up the Strip Washer | 39
sure the arrow on the check valve points away from the pump.
4. Connect the other end of the tube to the dispense manifold.
Fluid supply installed
When you're ready, snake the tubing from the devices mounted on the
back of the instrument to the manifolds on the front: put the supply
tubing check valves and the rigid fixture of the waste tube in the
center of the bracket.
As part of the setup: Install Washer Manifolds on page 41.

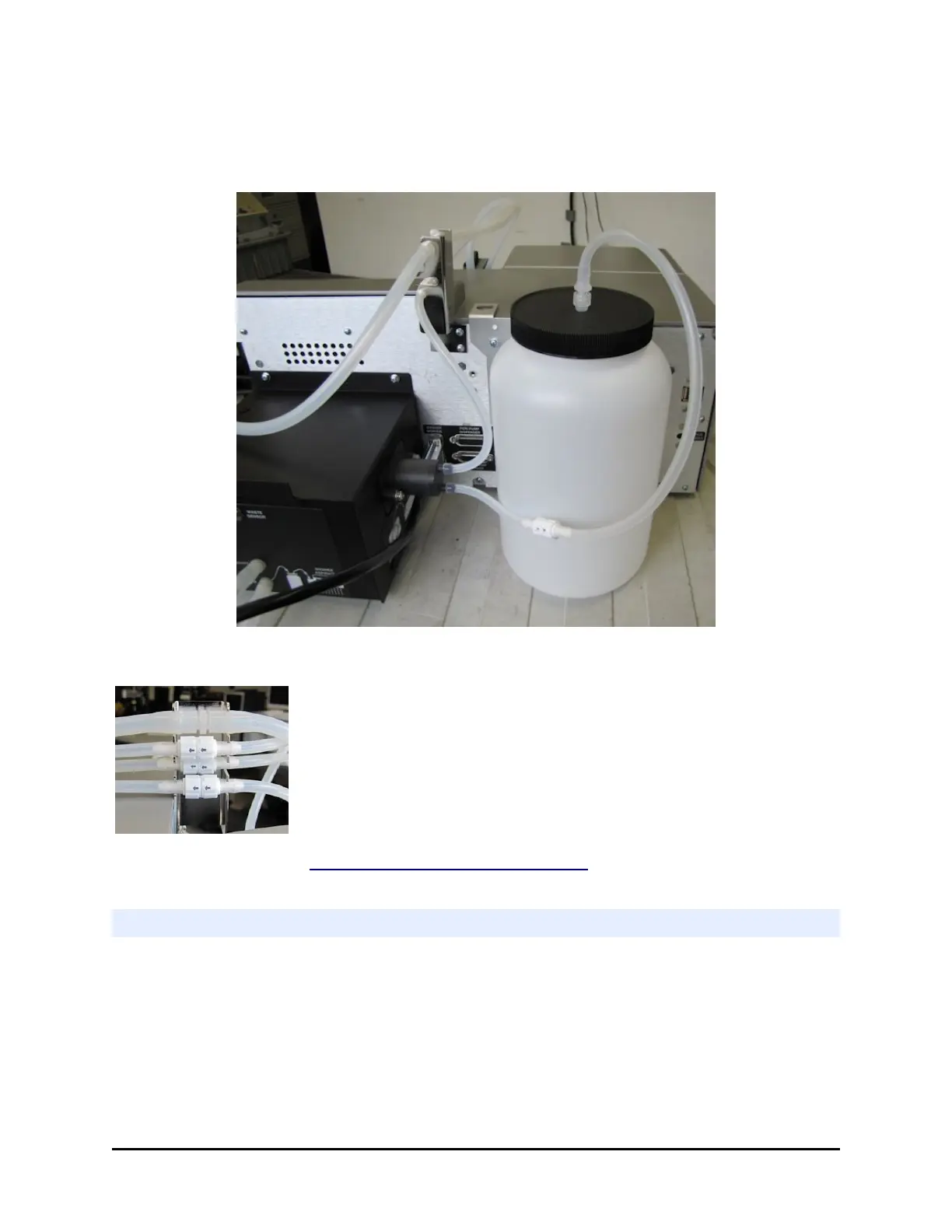

Install the Waste Bottle
The washer collects waste fluid during aspiration. The waste bottle is connected to
the vacuum pump (inside the washer module) and the aspirate manifold to
perform this function.
An inline vacuum filter (not shown) is optional but strongly recommended because
(1) the filter prevents waste material aerosols from being released into the air, and
