Biotek MultiFlo FX - Dispense Cassette Diagram

54 | Chapter 2: Installation
2. Plug the ribbon cable on the dispense
head into the RAD module (installed
on the tubing bracket).
Next, install the RADcassette: Install RAD Technology Cassette on page 58.

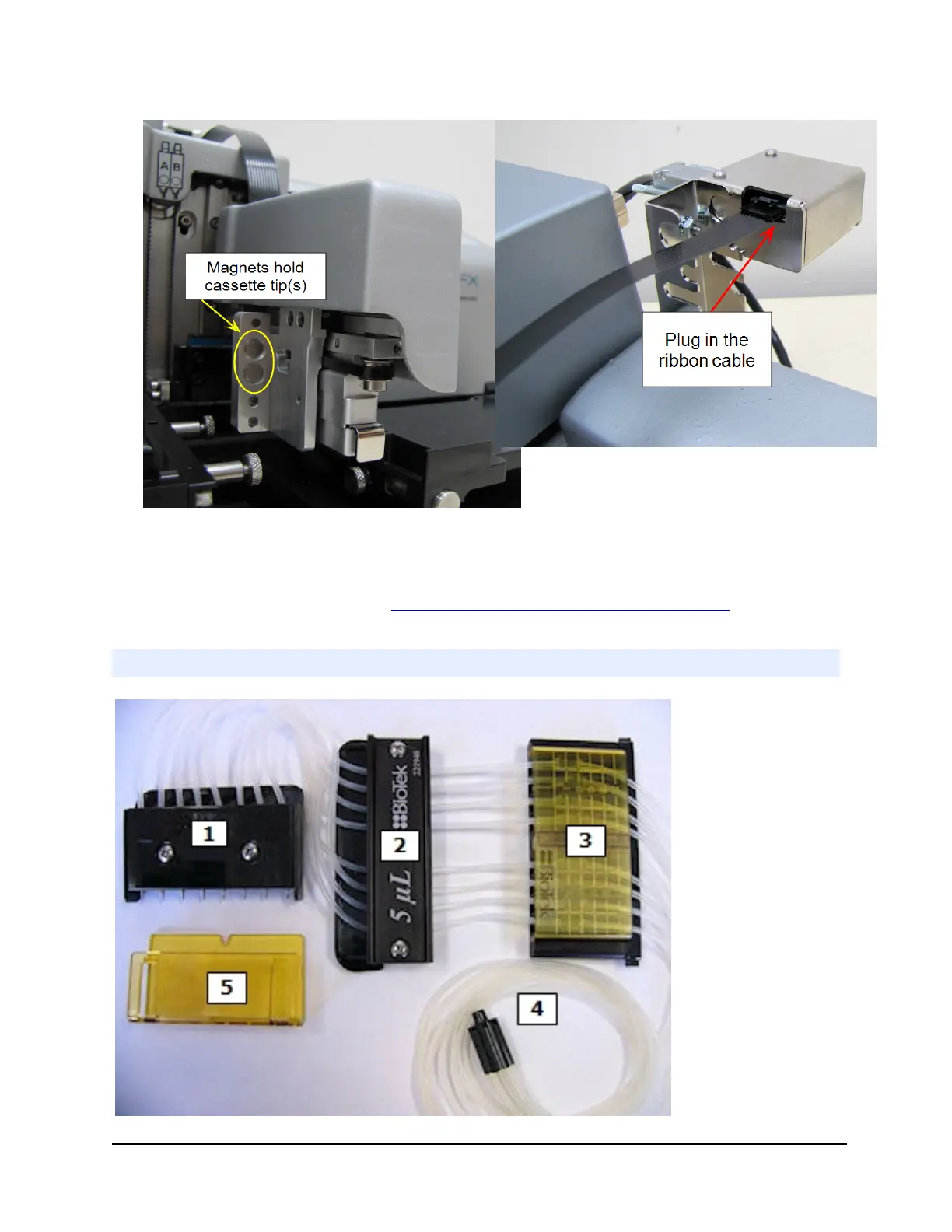

Dispense Cassette Diagram
1
- Tip Holder
2 - Center Holder
3 - Tube Tensioner
4 - Tubing Organizer
5 - Tip Guard
(remove before use)
MultiFlo™ FX Multi-Mode Dispenser
