38 | Chapter 2: Installation

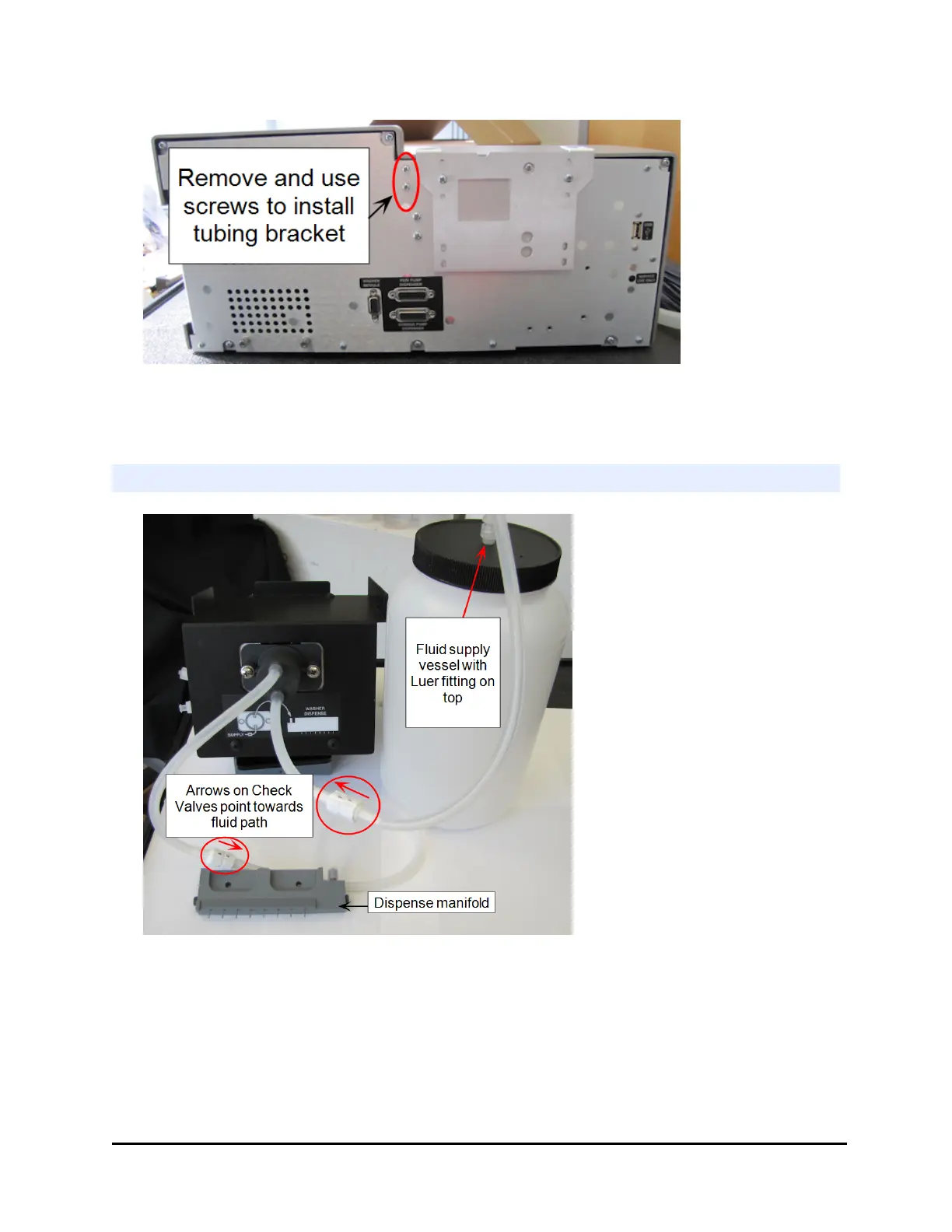

The tubing bracket is designed to snugly hold the check valves of the fluid supply
tubing and the waste tubing's rigid valve.
Install the Fluid Supply
The strip washer's fluid supply
system (PN 1263007) uses a
two-liter plastic supply vessel
and two tubes with check valves,
powered by a non-autoclavable
syringe pump.
1. Locate the tubing with the Luer fitting on one end. Gently screw the Luer fitting
into its connection on the top of the supply bottle. Finger-tighten only.
2. Attach the other end of the fluid supply tubing to the bottom port of the washer
pump. Make sure the arrow on the check valve points towards the pump.
3. Connect the tube without fittings to the top port of the washer pump. Make
