Space Requirements | 25
Space Requirements
The Physical Specifications on page 18 describe the width (W), depth (D) and height
(H) of the base unit of the MultiFlo FX without an external Peri-pump, Syringe
dispenser, or Washer installed. Likewise, the space required for the bottles, tubing
and power cables is omitted.

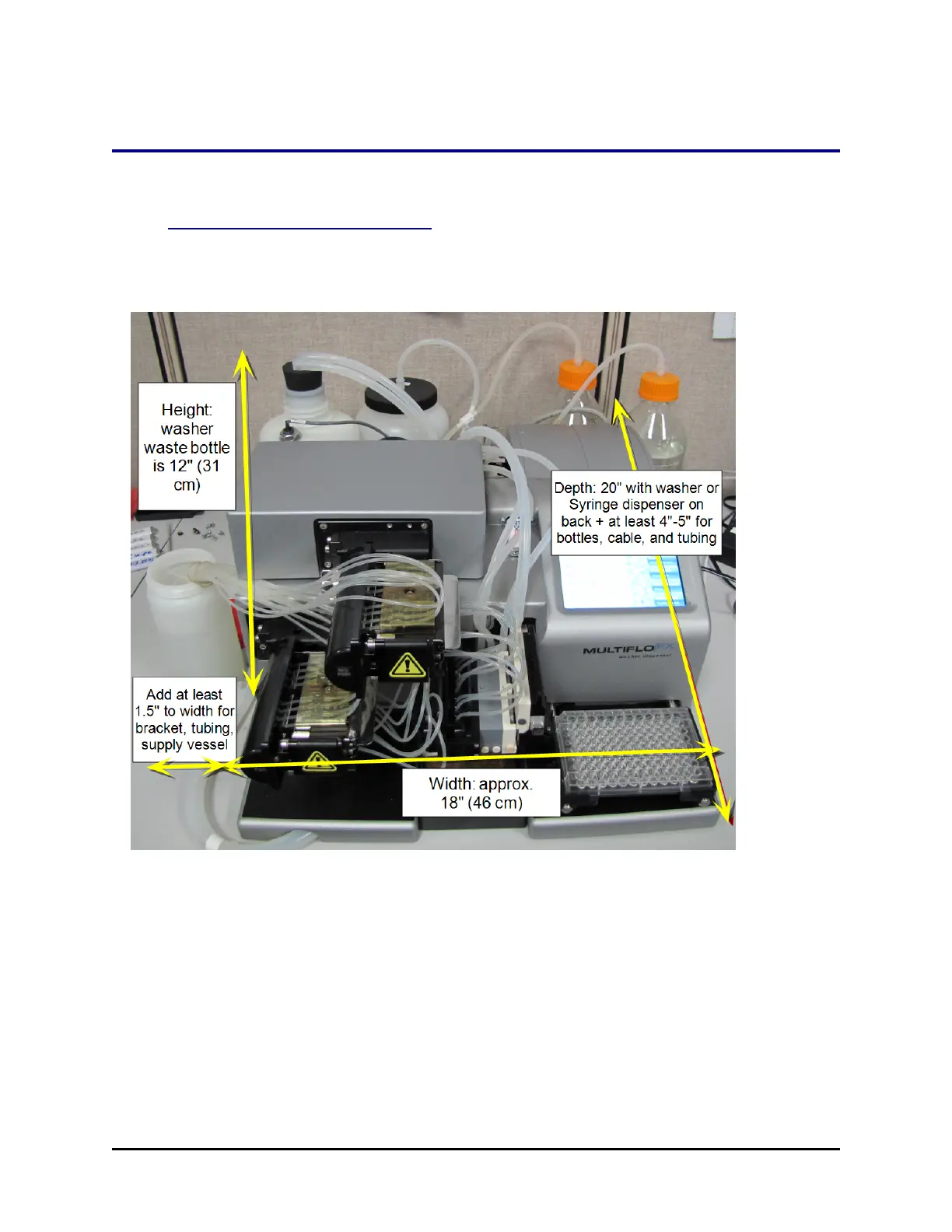

Beginning with the base unit dimensions, add space for accessory devices and vessels:
l Expect a depth of 20" (51 cm) when installing a Strip washer and/or Syringe dispenser to
the back. Similarly, expect to add 8" (20 cm) to the depth when installing the RAD
technology dispenser.
l Add 4"-5" to the depth or width for fluid supply and waste bottles, depending on
placement.
l Plan on a height of approximately 12" (31 cm) when installing the washer: the waste
bottle is the tallest accessory, or (if the waste bottle resides elsewhere) at least 10" to
accommodate the washer tubing bracket.
l When an external Peri-pump or Syringe dispenser is installed on top, the height
increases to about 10", which is required for RAD™ technology.
