Install the Syringe Dispenser Component | 65
Note: For MultiFlo FX washer or RAD
models, use the stainless steel tubing
bracket rather than the black plastic
bracket provided with the Syringe
dispenser.

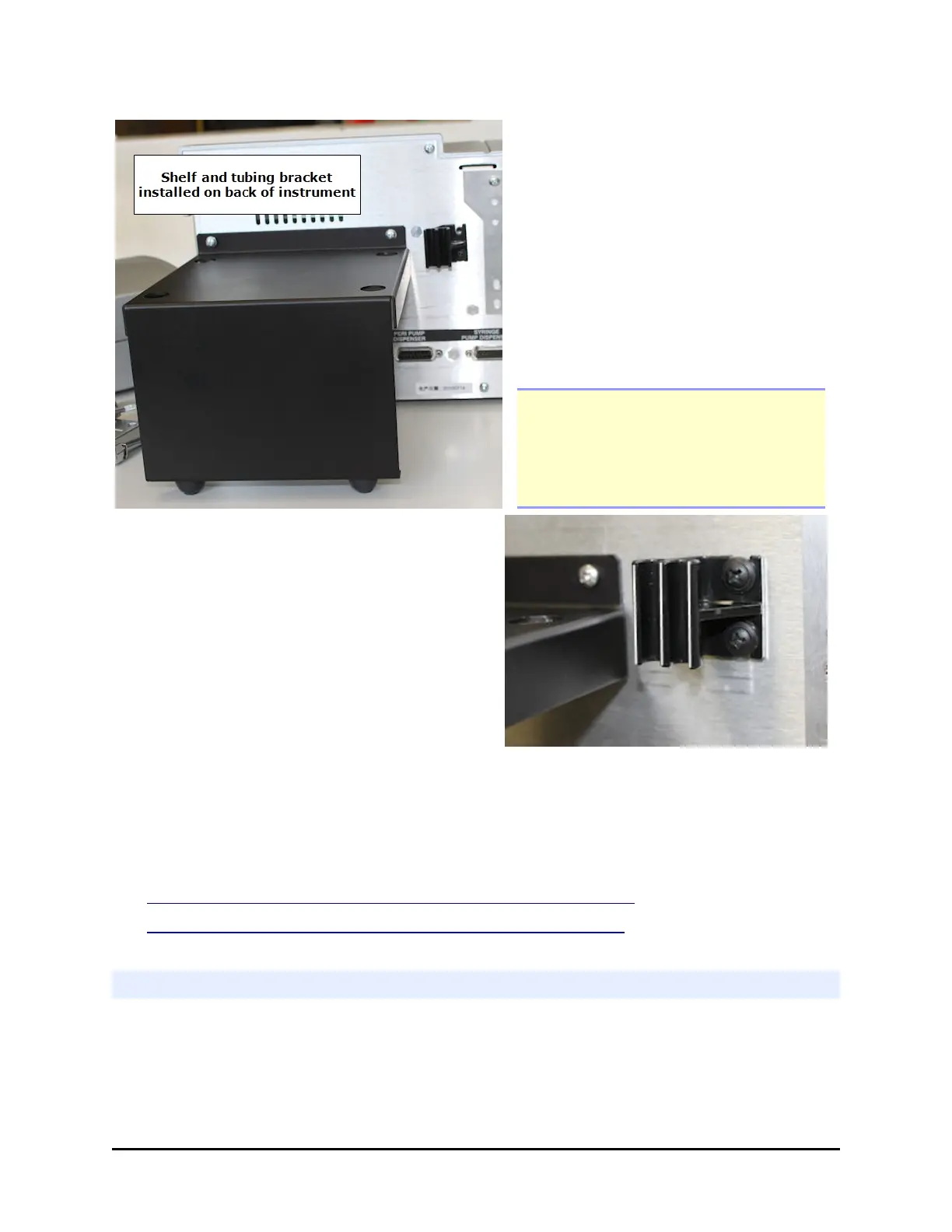

6. Install the tubing bracket (using the
black-capped screws) in the two holes
next to the shelf. First insert the bottom
screw part way. Position the bracket
over the screw and tighten both screws.
7. Put the syringe pump module on the shelf or the washer module.
8. Plug the serial cable into the back panel of the MultiFlo FX in the port labeled
Syringe Pump Dispenser. Plug the other end into the syringe pump unit.
Next steps:
l Update the instrument to use the Syringe Dispenser on page 74
l Install Tubing and Manifolds for Syringe Dispenser on page 68
Install the Syringe Dispenser on Top
Follow these instructions to install the dual Syringe dispenser module on top of the
instrument.
BioTek Instruments, Inc.
