66 | Chapter 2: Installation

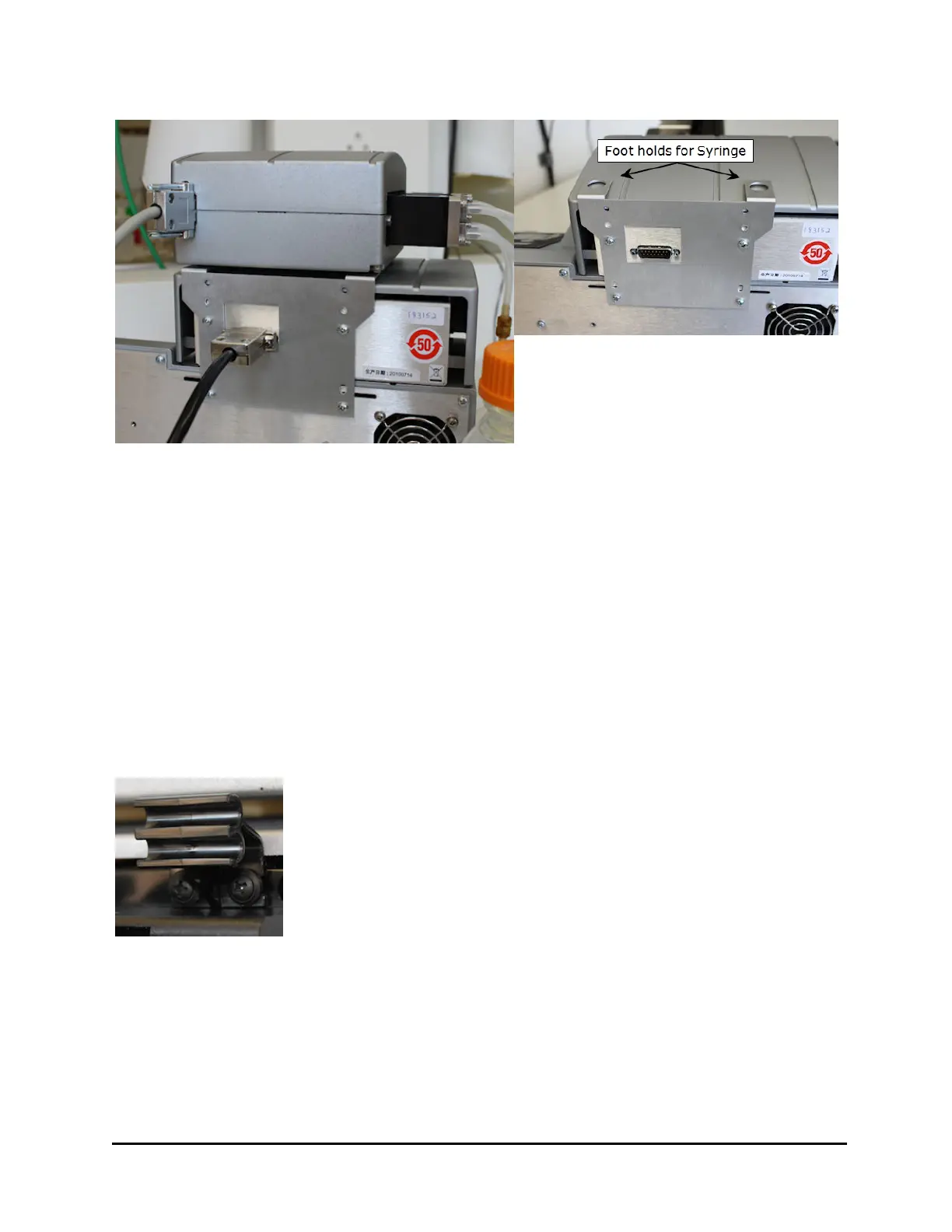

Syringe dispenser on top of secondary Peri-pump
Support bracket with foot holds
for the Syringe dispenser.
The MultiFlo FX ships with a support bracket attached to the back of the
instrument. The support bracket has foot holds for the Syringe dispenser. The
bracket's flexible design supports either one or two devices, the secondary Peri-
pump and the Syringe dispenser, alone or in combination.
1. Remove the support bracket from the back of the instrument by releasing the
two screws that hold it in place.
2. Align the bracket with the screw holes on the back of the instrument so that the
foot holds sit above the instrument or second Peri-pump's top.
3. Install the tubing bracket in the appropriate location using the two black-capped
screws:
Tubing Bracket
When installing the Syringe dispenser on top of the
instrument, the placement of the tubing bracket
varies slightly depending on how many other
dispensers are installed. Always position the
bracket as close as possible to the syringe pump
unit.
MultiFlo™ FX Multi-Mode Dispenser
