Install the Syringe Dispenser Component | 67

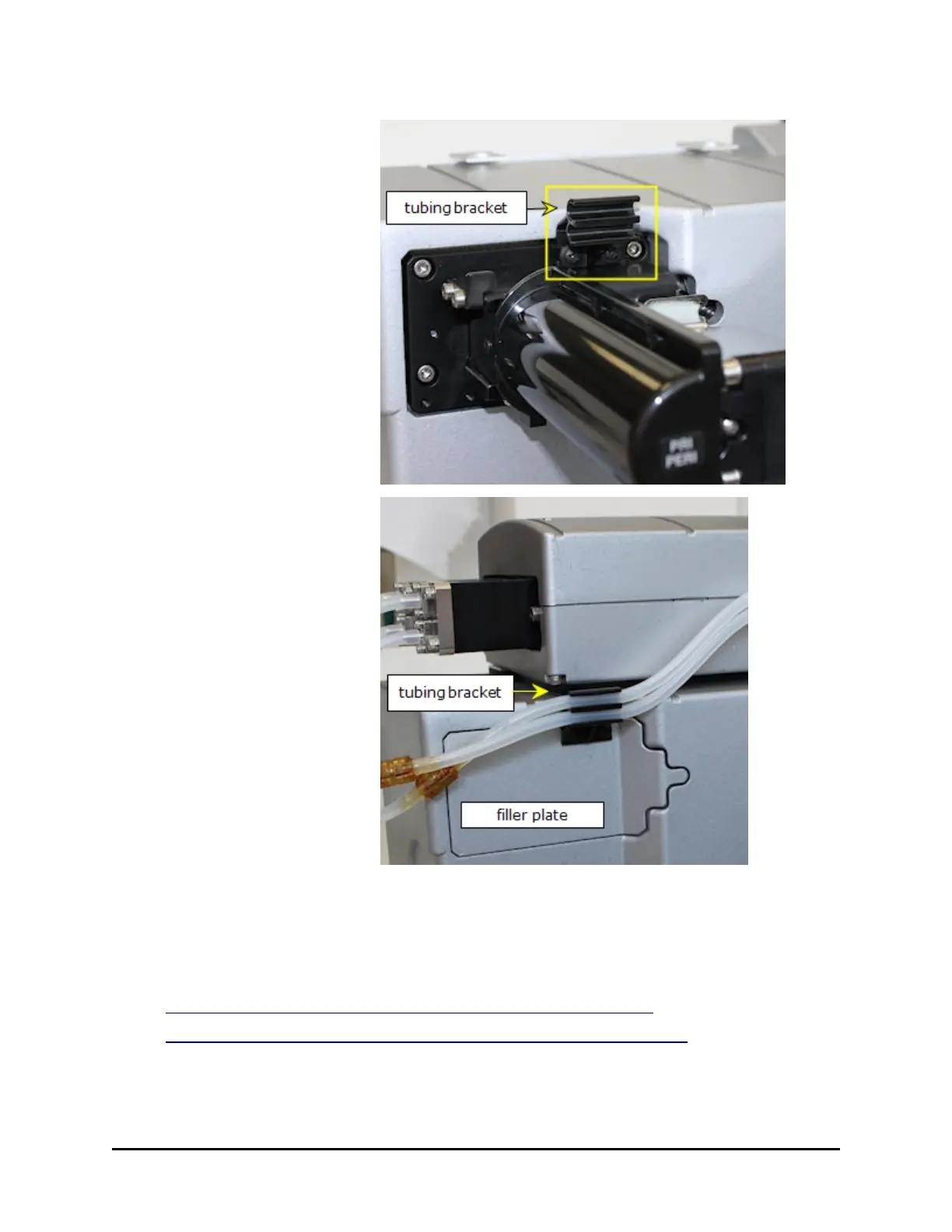

1 Peri-pump:
Install the bracket using the two
empty screw holes on top of the
Peri-pump.
2 Peri-pumps:
Install the bracket using the
screw holes on top of the
secondary Peri-pump, the
pump closest to the Syringe.
Syringe Only
(no Peri-pump)
Remove the two screws in the
filler plate on the front of the
instrument and replace them
with the tubing bracket.
4. Plug the 26-pin high-density cable into the back panel of the MultiFlo FX in the
port labeled Syringe Pump Dispenser. Plug the other end into the syringe
pump unit.
Next steps:
l Update the instrument to use the Syringe Dispenser on page 74
l Install Tubing and Manifolds for Syringe Dispenser on the next page
BioTek Instruments, Inc.
