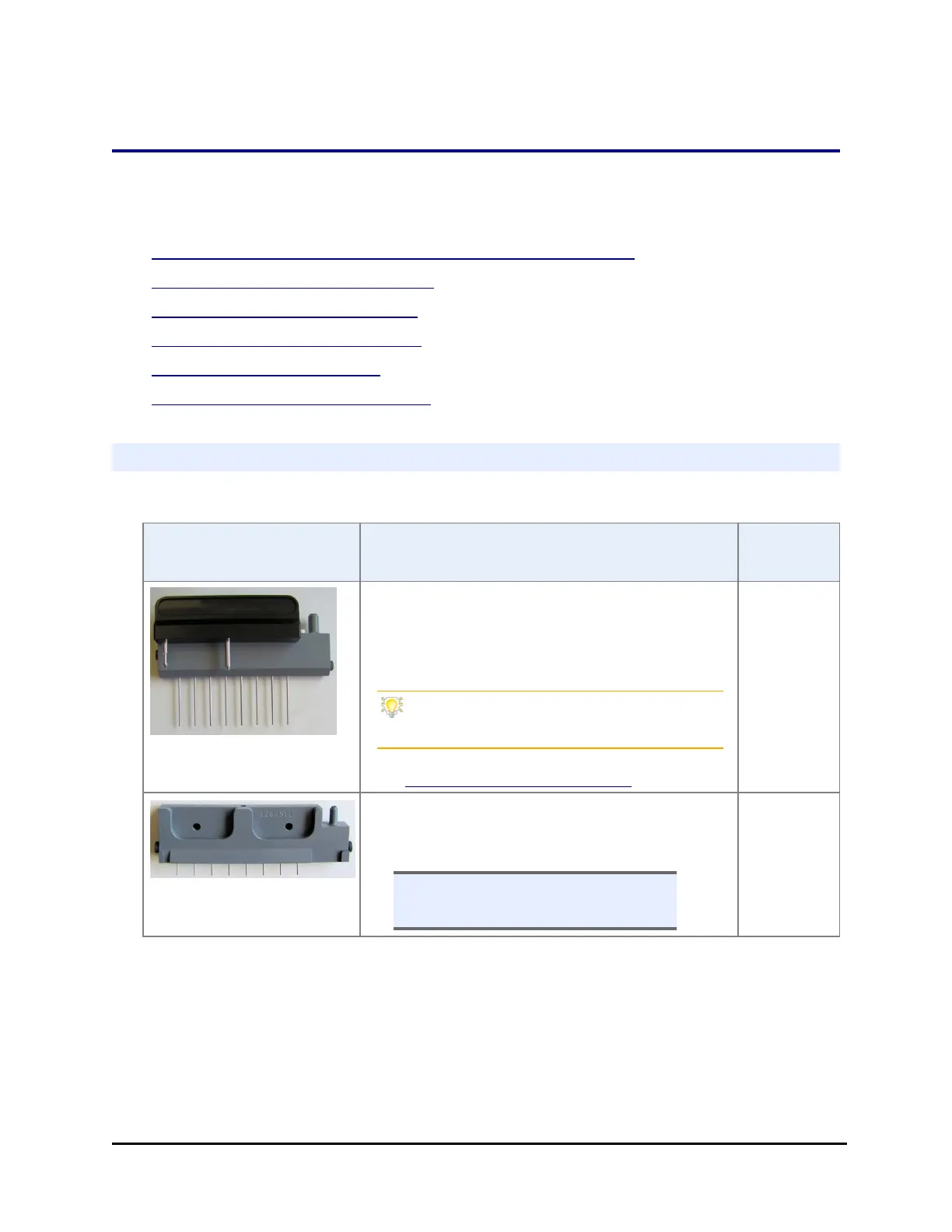

34 | Chapter 2: Installation
Set up the Strip Washer
Perform these steps:
l Attach washer module and connect its cable on the facing page,
l Install the tubing bracket on page 37,
l Install the Fluid Supply on page 38,
l Install the Waste Bottle on page 39,
l Install the muffler on page 41,
l Install Washer Manifolds on page 41.
Strip Washer accessories
Provided with the strip washer module:
Part Part Description
Part
Number
Aspirate manifold: install on dedicated
aspirate arm. Press the stainless steel tab on
the front of the arm to install (and to remove)
the manifold.
Install this manifold last, after installing
items on the dispense arm.
See Install Washer Manifolds on page 41
1260510
for 96/384-
well
(shown)
Dispense manifold: install on the dispense
arm after installing either the Syringe
dispenser manifolds or the spacer block.
n Several plate-type-specific
manifold sets are offered.
1260511
for 96/384-
well
(shown)
MultiFlo™ FX Multi-Mode Dispenser
