Biotek MultiFlo FX - Install RAD Dispense Head

Install RAD Technology Components | 53
1. First, remove the thumbscrew and bolt shipped on the tubing bracket.
2. Use the thumbscrew to attach the RAD module to the tubing bracket.

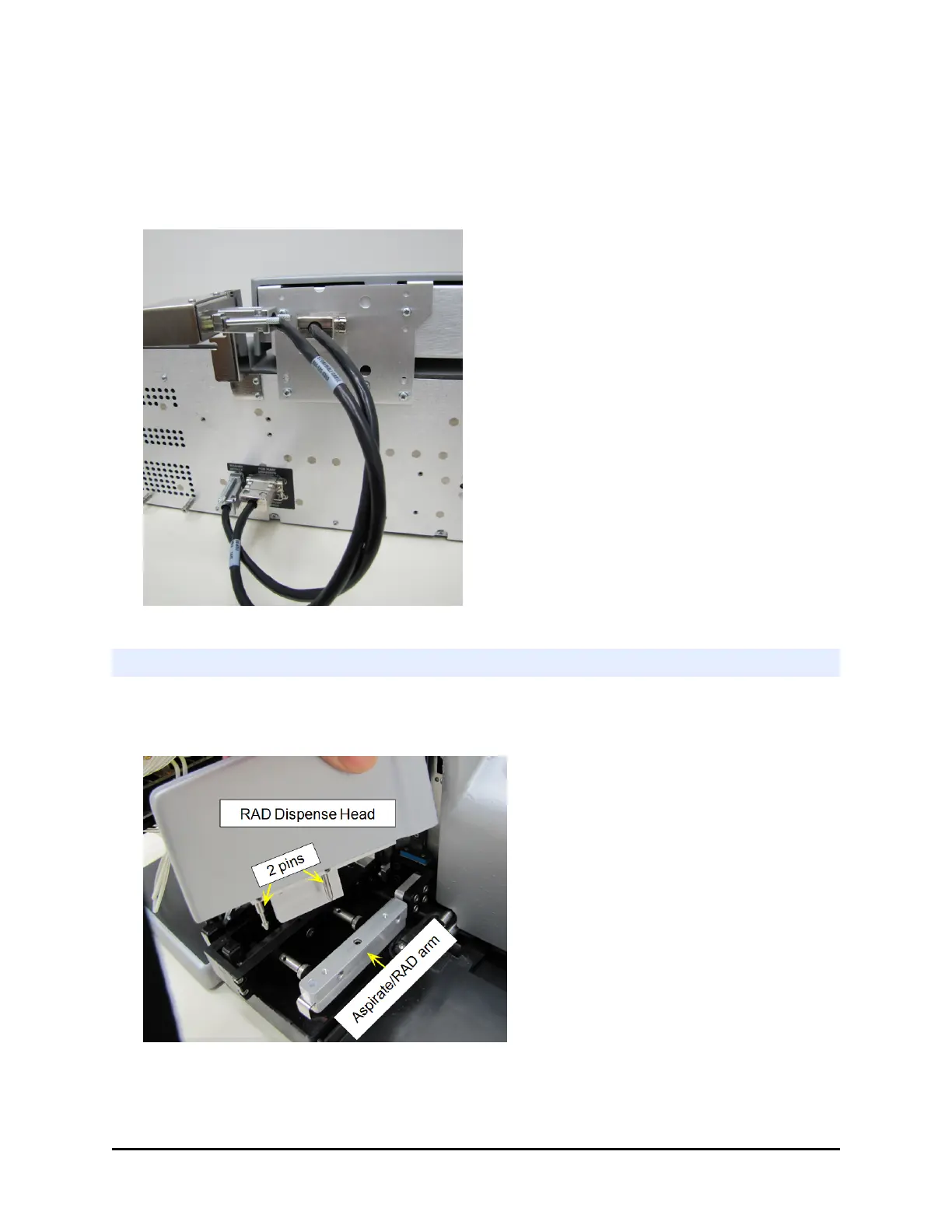

RAD: Plug in the cables
Plug the cables into their respective ports:
l RAD module to Washer Module port
l Peri-pump to Peri-Pump Dispenser
port
Install RAD Dispense Head
The RAD dispense head resides on the dedicated Aspriate manifold/RAD arm. Its
ribbon cable plugs into the RADmodule (installed in earlier step).
1. Align the two pins on the dispense
head with the two holes on the
RADarm, and press the Release Tab
(on the front of the arm) to install the
dispense head.
