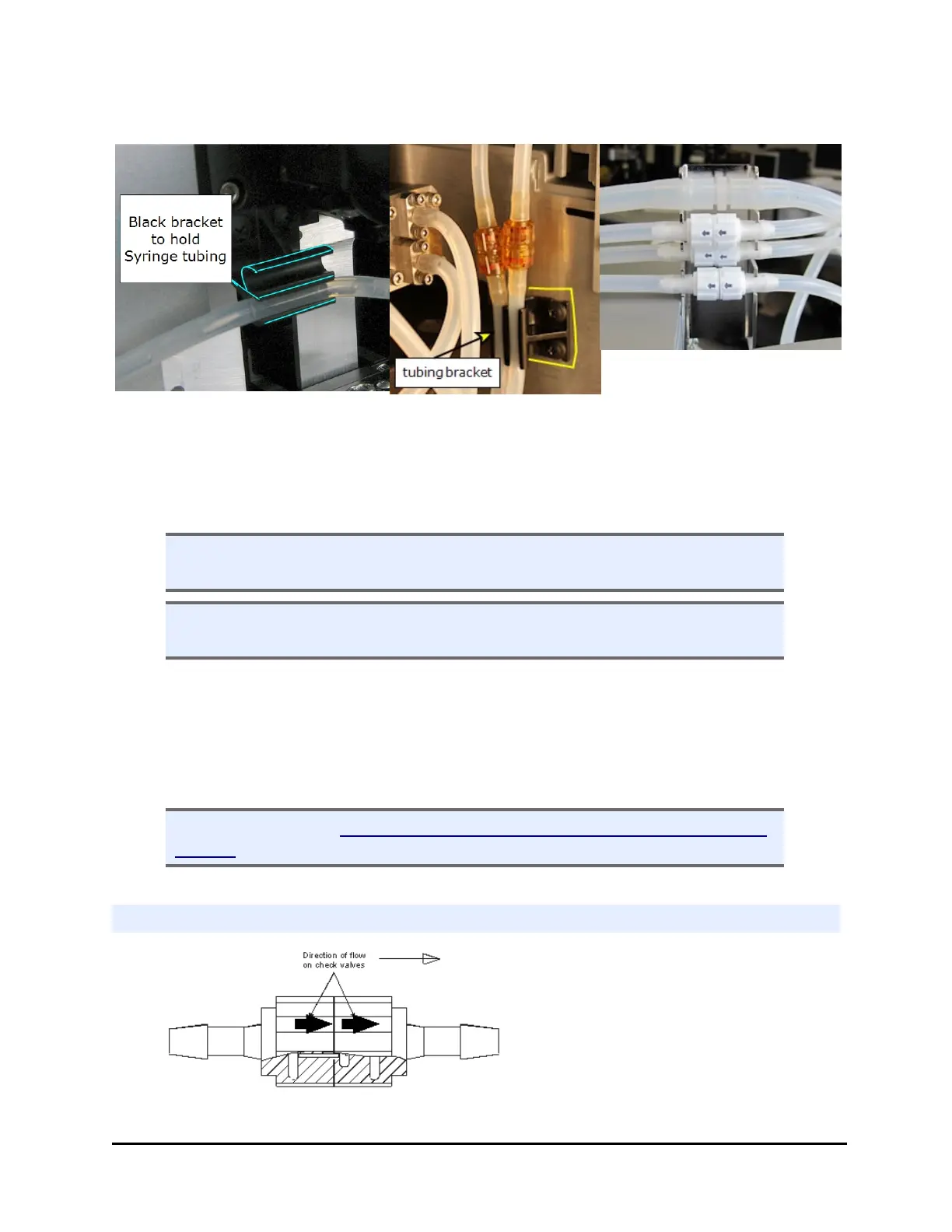

70 | Chapter 2: Installation
You can install the tubing bracket:
on the front near the Peri-pump on the back next to shelf or share washer/RAD bracket
6. Make sure the manifold has enough slack in the tubing to move down to the
priming trough and then press the tubing into the tubing bracket to keep the
tubing out-of-the-way.
n When the Syringe is installed on the back shelf, you must temporarily move
the pump unit to get access to the tubing bracket.
n When the Syringe in installed on top of the washer, use the washer's tubing
bracket, instead.
7. Repeat the tubing and manifold installation for Syringe B.
8. (Optional) Insert the thumbscrews into the posts that hold the manifolds.
(Magnets keep the manifolds attached to the dispense arm. The thumbscrews
are provided in case the magnets interfere with operation, e.g. for magnetic
bead assays.)
n Important! You must Update the instrument to use the Syringe Dispenser on
page 74.
Syringe Dispenser Check Valves
MultiFlo™ FX Multi-Mode Dispenser
