Electrical and Ignition
Connector Servicing
142

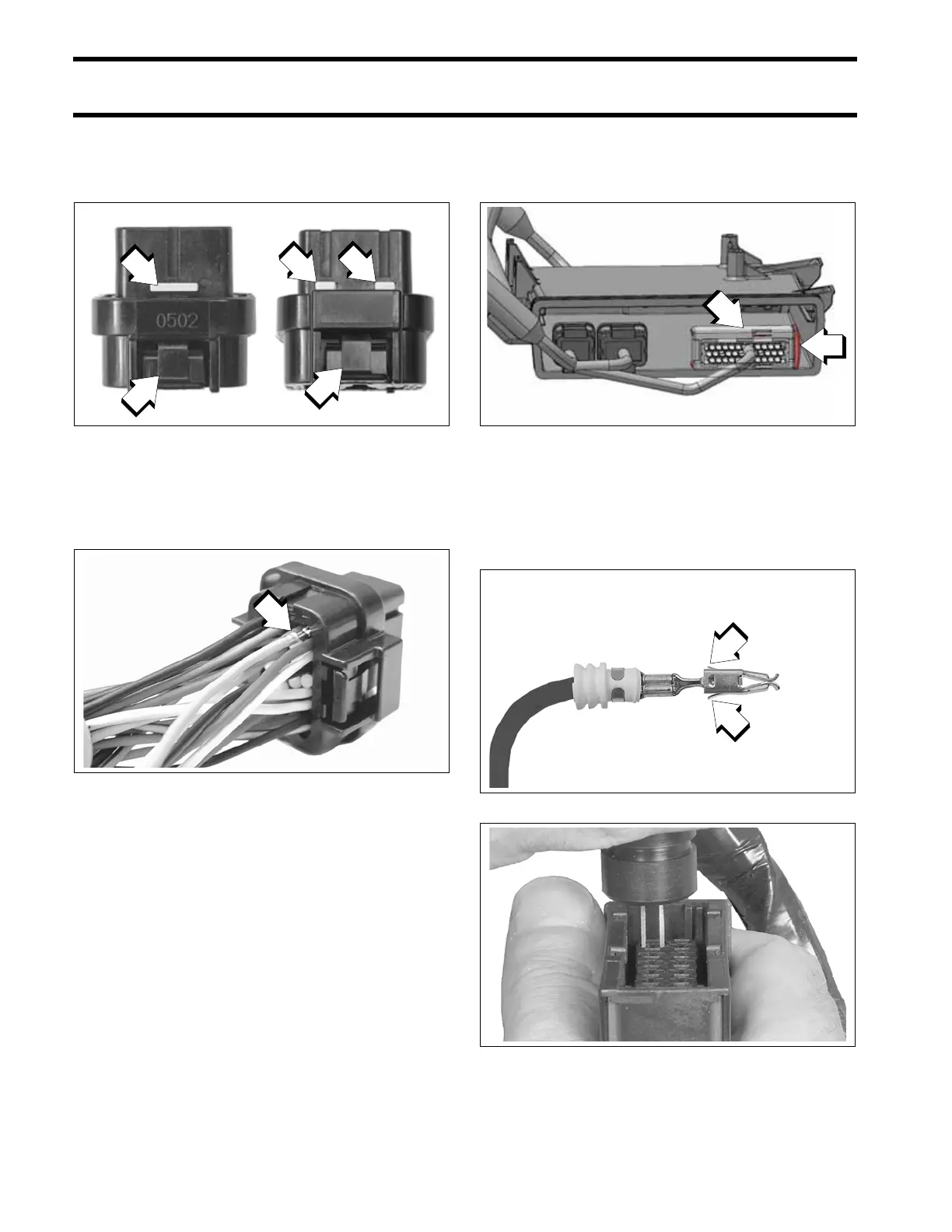

Terminal Removal
Open lock mechanism and remove terminal from
connector housing.
Terminal Installation
Push terminal through seal until it is seated in con-
nector housing. Close lock mechanism.
POWER TIMER SERIES
The J2 and J4 connectors of the EMM are AMP
Power Timer Series connectors.
Disconnect
Use a screw driver to open latch. Pull connector
from plug.
Connect
Push connector until seated in plug. Close latch
completely.
Terminal Removal
Use Terminal Release Tool, P/N 351413, to
release BOTH locking mechanisms of connector.
Pull terminal from housing.
1. Latch
2. Lock mechanism
002453
1. Terminal
002454
1. J2 connector
2. Latch (closed)
002120
1. Locking mechanism(s)
002455
1. Terminal release tool
002313
