141
Electrical and Ignition

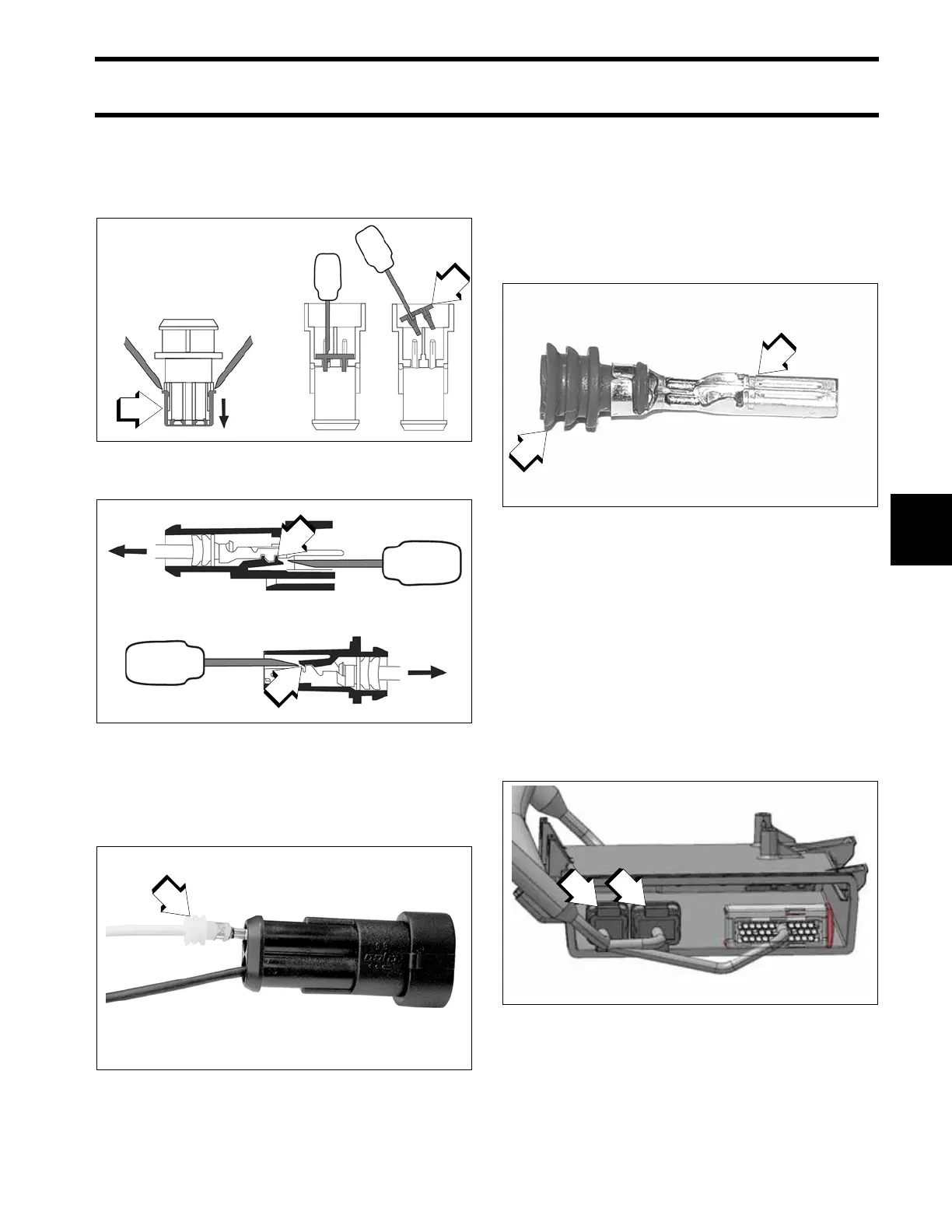

Connector Servicing
6
use Primary Lock Tool, P/N 777077, to release
locking tab of connector housing. Release locking
tab and pull on wire to remove from connector
housing.
Terminal Installation
Align terminal with connector housing. Push con-
nector and seal into housing until seated.
Align locking device with connector housing and
terminals. Use Secondary Lock Installer,
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires AMP
Crimp Tool with dies, P/N 777281.
SUPER SEAL
The J1-A, J1-B and J3 connectors of the EMM are
AMP Super Seal connectors.
Disconnect
Depress BOTH latches and pull connector from
plug.
Connect
Push connector into plug until latches engage.
1. Locking device, plug
2. Locking device, receptacle
002449
002450
1. Locking tab, plug
2. Locking tab, receptacle
002447
1. Terminal and seal
002451
1. Terminal
2. Seal
002452
J1A and J1B Connectors
009382
1. Latch
