265
Powerhead
Powerhead Installation
11

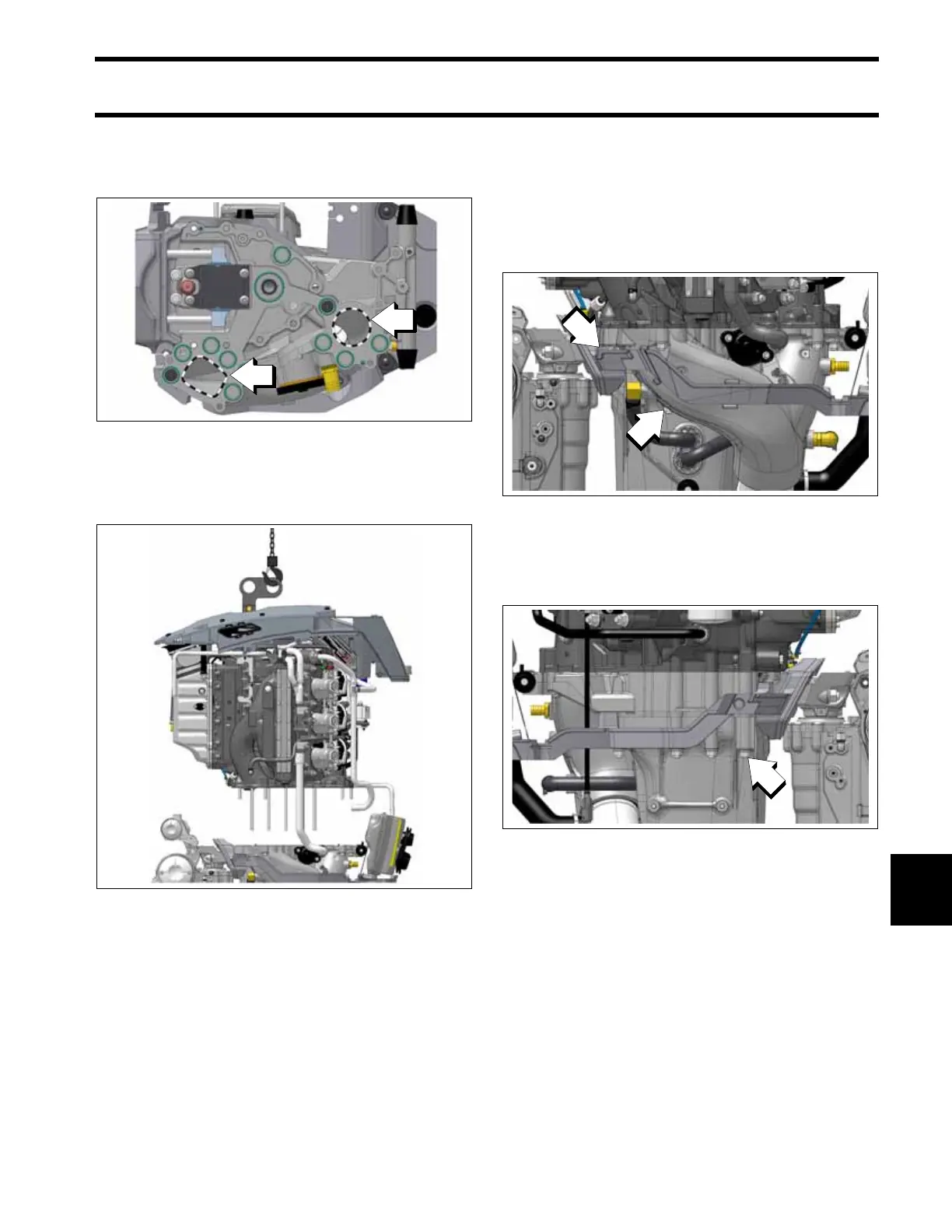

Apply a 1/4 in. (6 mm) bead of high-temperature
RTV, such as Permatex #26BR around the
exhaust passage areas.
Slowly lower the powerhead into position. Care-
fully guide the mounting studs of the powerhead
into the exhaust adapter and exhaust housing.
Install the 12 washers and nuts to retain the pow-
erhead to the exhaust adapter and exhaust hous-
ing.
On the port side, there are four washers and nuts
on the exhaust adapter and four washers and nuts
on the exhaust housing.
On the starboard side, there are four washers and
nuts on the exhaust housing.
1. Apply high-temperature RTV
009236
009180
Port
1. Four nuts and washers on the exhaust adapter
2. Four nuts and washers on the exhaust housing
009178
Starboard
1. Four nuts and washers on the exhaust housing
009179
