266
Powerhead
Powerhead Installation
Tighten the nuts in the sequence shown to a
torque of 22 to 24 ft. lbs. (30 to 32 N·m).
Wait 5 minutes, then re-tighten the nuts. Use the
same sequence and tighten to a torque of
22 to 24 ft. lbs. (30 to 32 N·m).
Remove the lift ring from the powerhead.

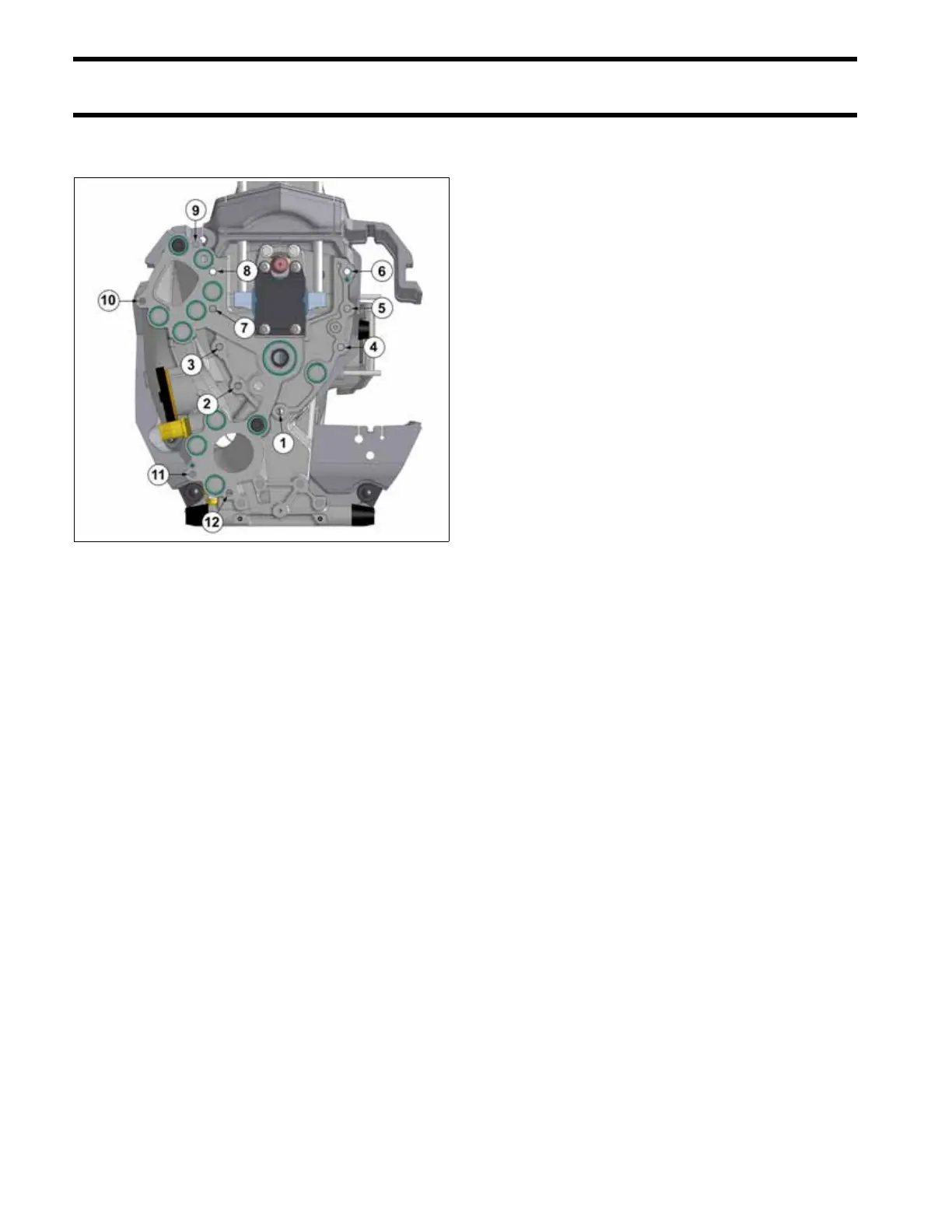

Torque Sequence
009235
