BRP Evinrude E-TEC G2 - Page 318

Stern and Swivel
DPS Manifold Service
318

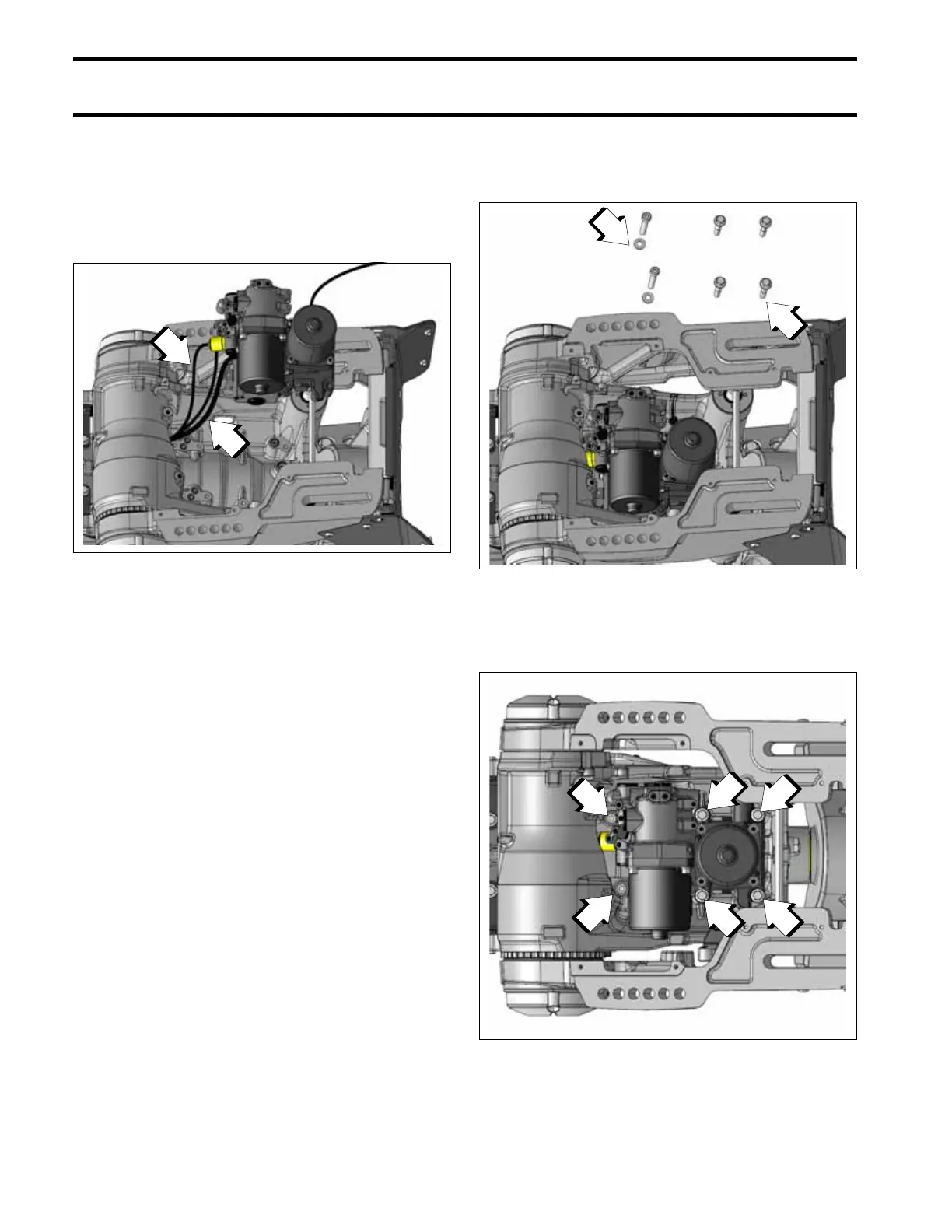

Carefully install leads and cables through the port
side of the swivel bracket in this order:
• DPS motor cable
• steering pressure sensor leads
• trim sender lead
• trim motor cable
Carefully place the manifold assembly into posi-
tion on the swivel bracket. Take care to keep
o-rings in position.
Install the two cap screws and washers into the
DPS manifold and the four hex screws into the
trim manifold.
Tighten screws in the sequence shown to a torque
of 18 to 20 Ft. lbs. (24.4 to 27 N·m).
Install the trim sender on the port stern bracket.
Refer to Trim Sender Service in the correct Ser-
vice Manual.
1. DPS motor cable
2. Steering pressure sensor leads
009433
1
2
1. Two cap screws and washers
2. Four hex screws
009433
Tightening Sequence
009433
1
2
3
1
2
1
2
4
3
5
6
