Stern and Swivel
Trim & Tilt System Service
324

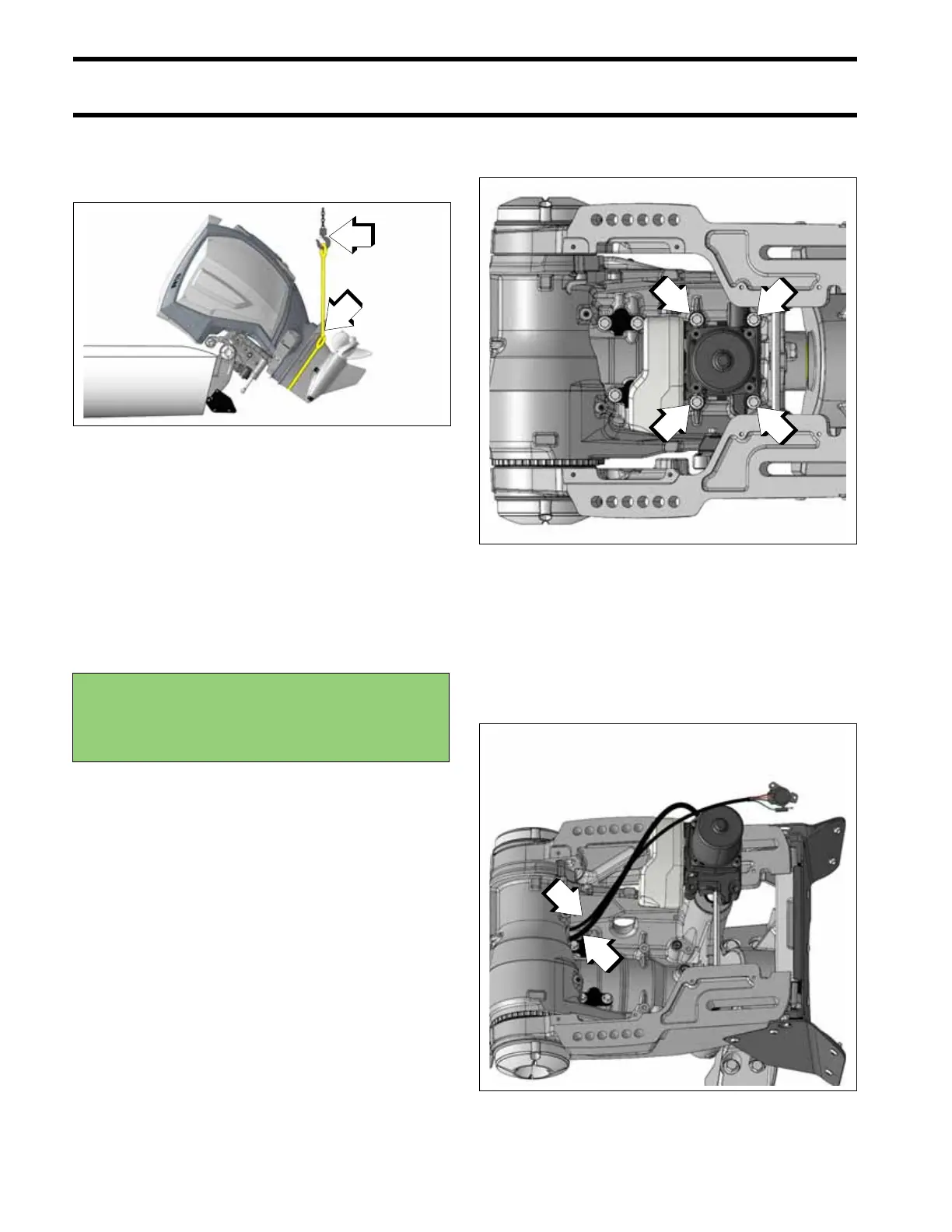

Use a strap and an appropriate hoist to support
the outboard by the gearcase. The outboard will
drop when the trim and tilt manifold is removed.
Removal
Remove the trim sender from the port stern
bracket. Do NOT remove the trim sender wires at
this time. Refer to Trim Sender Service on
p. 344.
Place a large pan under the outboard to catch
hydraulic oil as the manifold assembly is removed
from the swivel bracket.
Remove the four hex screws retaining the trim
manifold.
Carefully remove the manifold assembly from the
outboard. Use shop towels to wipe up spilled
hydraulic oil.
As the manifold is removed, carefully remove the
trim sender leads and trim motor cable through
the port side of the swivel bracket.
1. Strap
2. Hoist
009576
ENVIRONMENTAL NOTE
Dispose of used oil and contaminated shop tow-
els in an environmentally responsible manner, or
in according to local regulations.
1. Screws
009449
1. Trim sender leads
2. Trim motor cable
009450
