329
Stern and Swivel
Trim & Tilt System Service
13

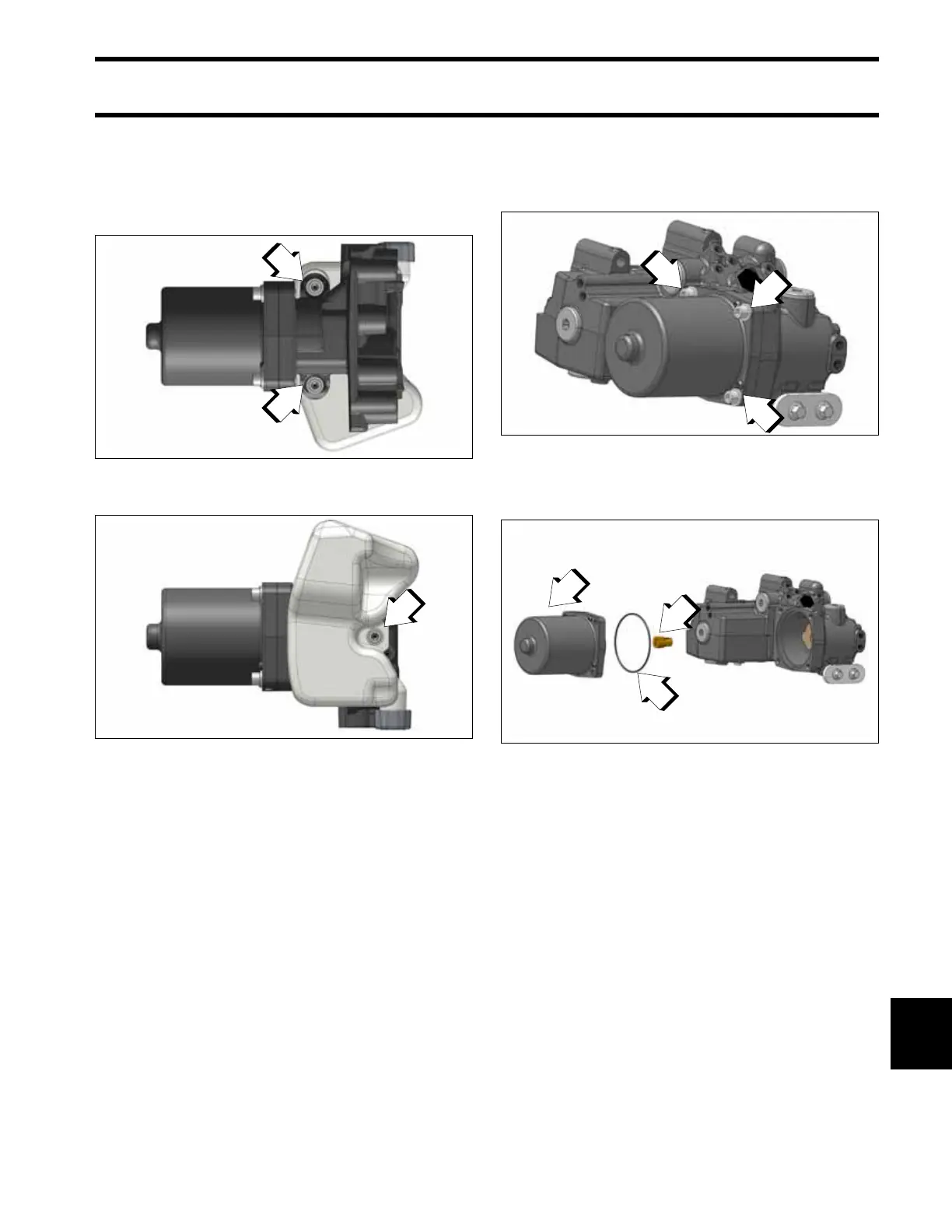

Assemble the manifolds:
• Install two screws and washers from the bottom
of the trim manifold
• Install one screw and washer from the top of the
trim reservoir.
Tighten the screws to a torque of 60 to 84 In. lbs.
(7 to 10 N·m).
Electric Motor
Remove the four screws and washers retaining
the electric motor to the manifold housing.
Remove the electric motor, o-ring and coupler
from the manifold housing.
Clean and dry all parts thoroughly.
Assembly is the reverse of disassembly.
Tighten screws to a torque of 60 to 84 In. lbs.
(7 to 10 N·m)
Bottom Of Trim Manifold
009464
1. Two screws and washers
Top of Trim Reservoir
009463
1. Screw and washer
1. Screws and washers (3 shown)
009459
1. Electric motor
2. O-ring
3. Coupler
009460
