Stern and Swivel
Trim & Tilt System Service
328

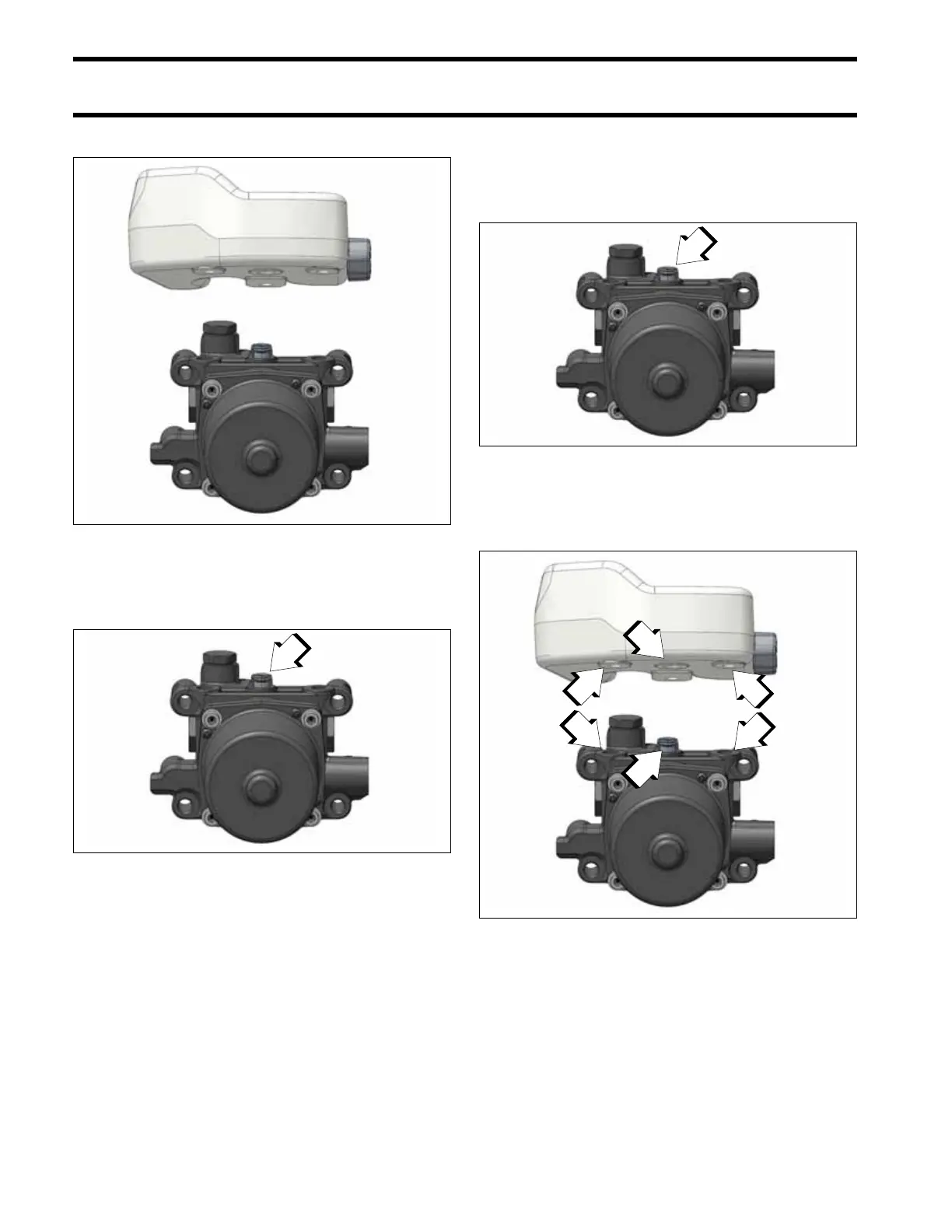

Carefully separate the reservoir from the manifold.
Inspect the tube and o-ring in the manifold.
Replace the tube and o-rings if the o-rings show
signs of damage.
Clean and dry all parts thoroughly.
Manifold Assembly
Apply a drop of Power Trim/Tilt Fluid, P/N 767969,
to the o-rings of a new tube and o-ring assembly.
Install the tube and o-rings into the manifold.
Align the screw bosses, and fluid passage of the
trim reservoir with the screw bosses, and the tube
and o-rings of the trim manifold.
009465
1. Tube and o-rings
009465
1. Tube and o-rings
009465
1. Retaining screw bosses (reservoir)
2. Fluid passage
3. Retaining screw bosses (manifold)
4. Tube and o-rings
009462
