Stern and Swivel
Stern & Swivel Bracket
348

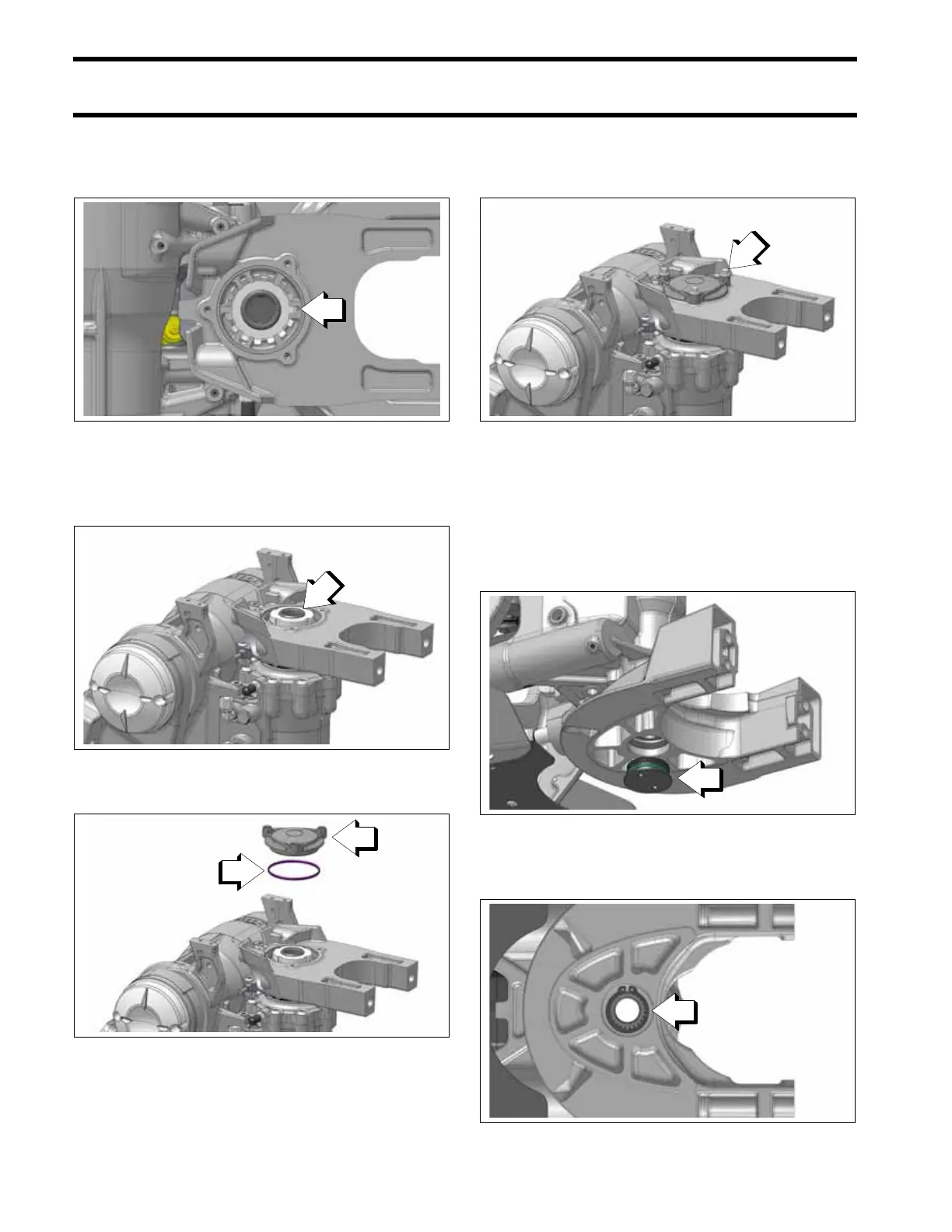

Place the locking washer over the steering shaft
with the locating tab in the hole at the rear of the
steering arm.
Use Spanner Socket, P/N 359224, to install the
spanner nut. Tighten the spanner nut to a torque
of 59 to 70 Ft.lbs. (80 to 94 N·m)
Install the cover and o-ring.
Install the three screws in the steering arm cover.
Tighten screws to a torque of 79 to 96 In.lbs.
(9 to 10 N·m).
Install the engine on the stern and swivel bracket
assembly. Refer to Installation on p. 337.
Lower Bracket Removal
Use Spanner Wrench, P/N 912084, to remove the
lower cover and o-ring.
Use a bent-jaw retaining ring pliers to remove the
retaining ring.
1. Locating tab
009654
1. Spanner nut
009646
1. Cover
2. O-ring
009645
1. Screws
009644
1. Lower cover and o-ring
009650
1. Retaining ring
009651
