BRP Evinrude E-TEC G2 - Trim and Tilt Functions

35
Routine Service
Rigging Information
2
Rigging Center Connections
1
4
5
10
11
12
8
6
7
9
3
2
13

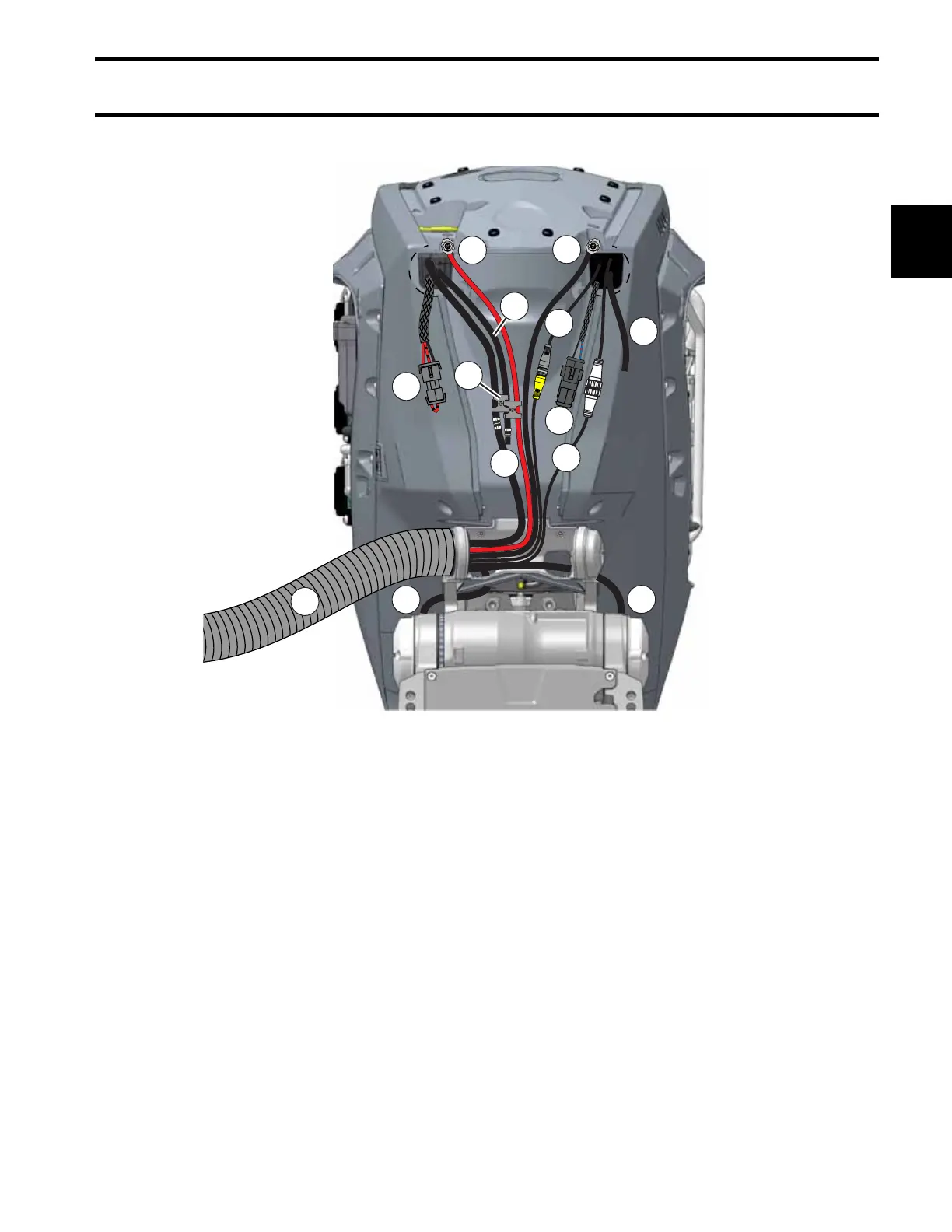

Rigging Center
1. Flexible Conduit
2. Starboard Steering Hose
3. Port Steering Hose
4. Positive (+)Battery Stud
5. Negative (–) Battery Stud
6. NMEA 2000 Network Cable
7. Remote Control Network Cable
8. Engine Flushing Hose (optional)
9. Remote Oil Tank Electrical Connector (optional)
10. Auxiliary Battery Charge Connector (optional)
11. Fuel Supply Hose
12. Remote Oil Tank Oil Hose (optional)
009118
