36
Routine Service
Rigging Information

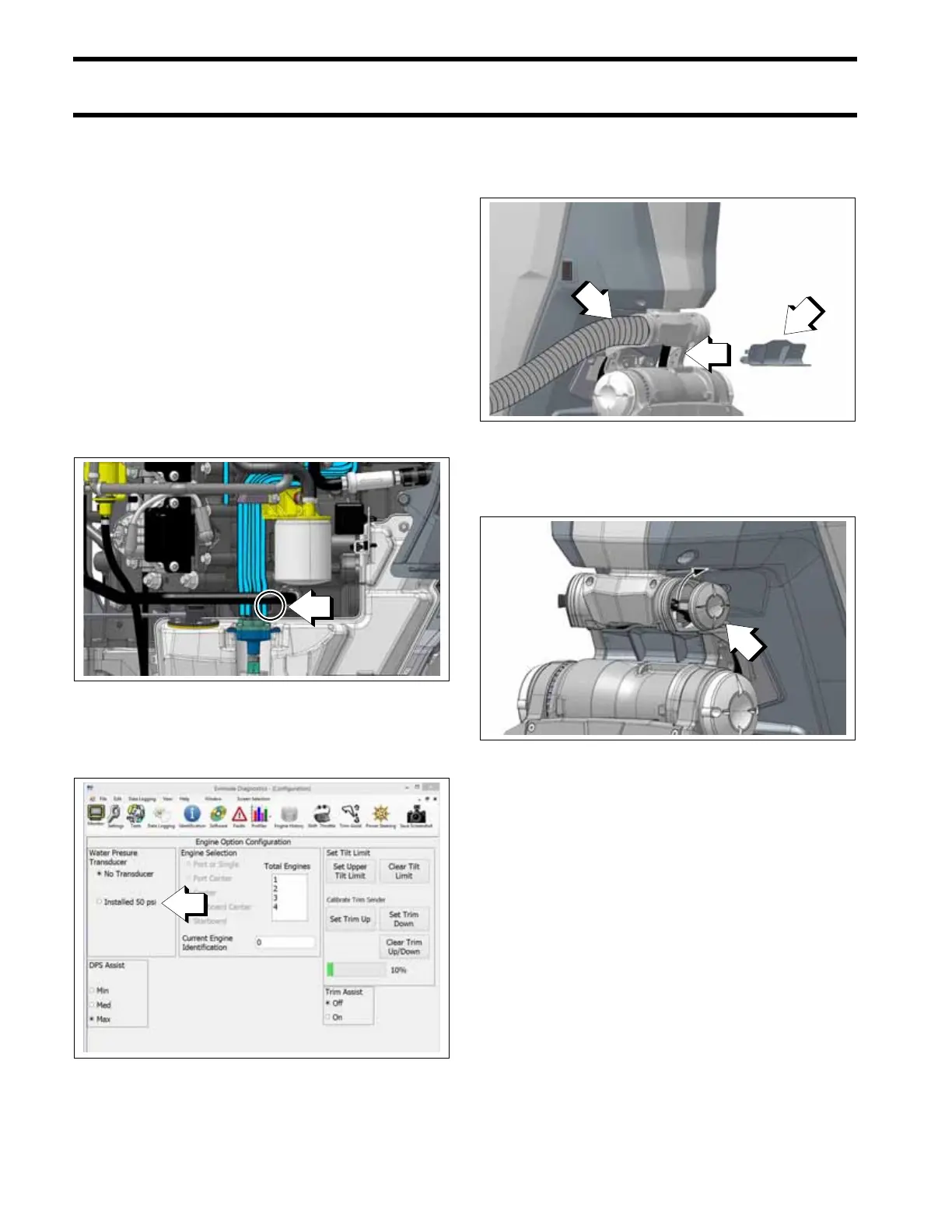

Water Pressure Connection
To send water pressure data to the EMM, along
with an NMEA 2000 display, install 50 psi Water
Pressure Transducer Kit, P/N 5008640.
Water pressure readings in excess of 40 psi (275
kpa) are possible at boat speeds in excess of
50 mph (80 kph/43 kts).
Remove the accessory water pressure plug from
the engine. Refer to the installation instructions
provided with the water pressure transducer kit.
IMPORTANT: Use the fittings and hose supplied
with the kit. Do NOT install the transducer directly
into the block.
Use the Configuration screen of Evinrude Diag-
nostics software v6.1 to set the water pressure
transducer.
Connect the transducer lead to the engine wiring
harness connector.
Install the rigging hose to the entry port of the rig-
ging center. Install the cover into place below the
cable entryway.
If removed, install cable entryway end cap. Turn
the end cap 90° to lock it into place.
Hose and Cable Clips
After completing connections, re-position the two
clips, P/N 352531, from the fuel and oil supply
hoses as shown:
• Attach one clip to the fuel hose and oil supply
hose.
• Attach the second clip to the oil supply hose
and positive battery cable.
1. Accessory water pressure plug
009119
1. Water pressure transducer
009237
1. Rigging hose installation
2. Cover
009094
1. Rigging center end cap
009391
