BRP Evinrude E-TEC G2 - Page 68

Engine Cover and Frame Service
Frame Removal
68

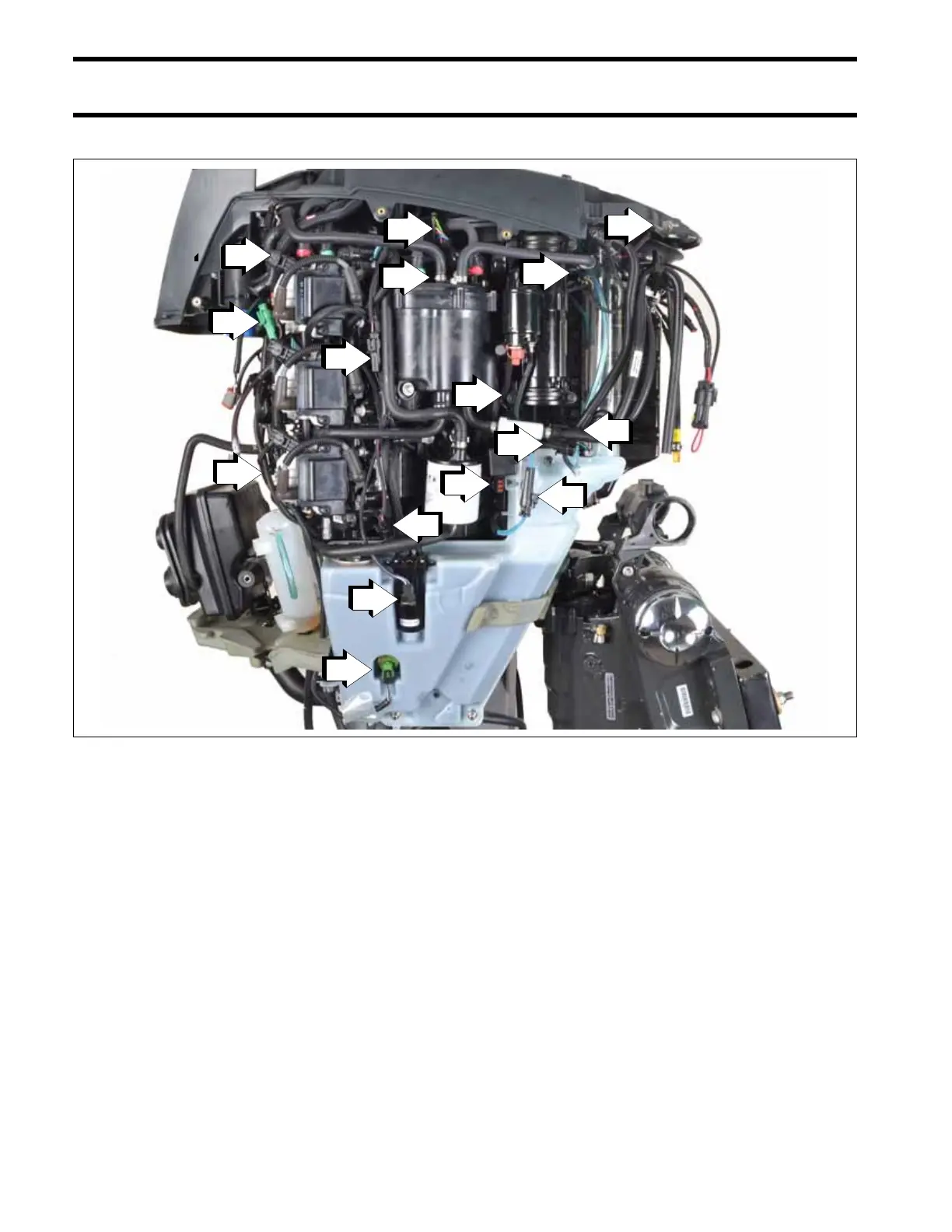

Disconnect the starboard side electrical connectors and hoses:
1. Ignition coil connectors (3X)
2. Vapor separator and fuel pump assembly connector (remove clip from fuel rail)
3. Positive battery cable
4. Vapor separator cooling hose
5. Vapor separator vent solenoid connector
6. Temperature sensor connector
7. Water-in-fuel sensor connector
8. Engine grounds
9. Trim sender connector
10. Trim switch connector
11. Water pressure sensor connector (if optional sensor is installed)
12. Trim relay connector
13. Oil level sensor connector
14. Crankcase oil pump connector
15. Low oil switch connector
16. Fuel injector connectors (3X)
009174
3
1
2
9
10
12
11
13
7
5
4
6
8
14
15
16
