Engine Cover and Frame Service
Frame Removal
3

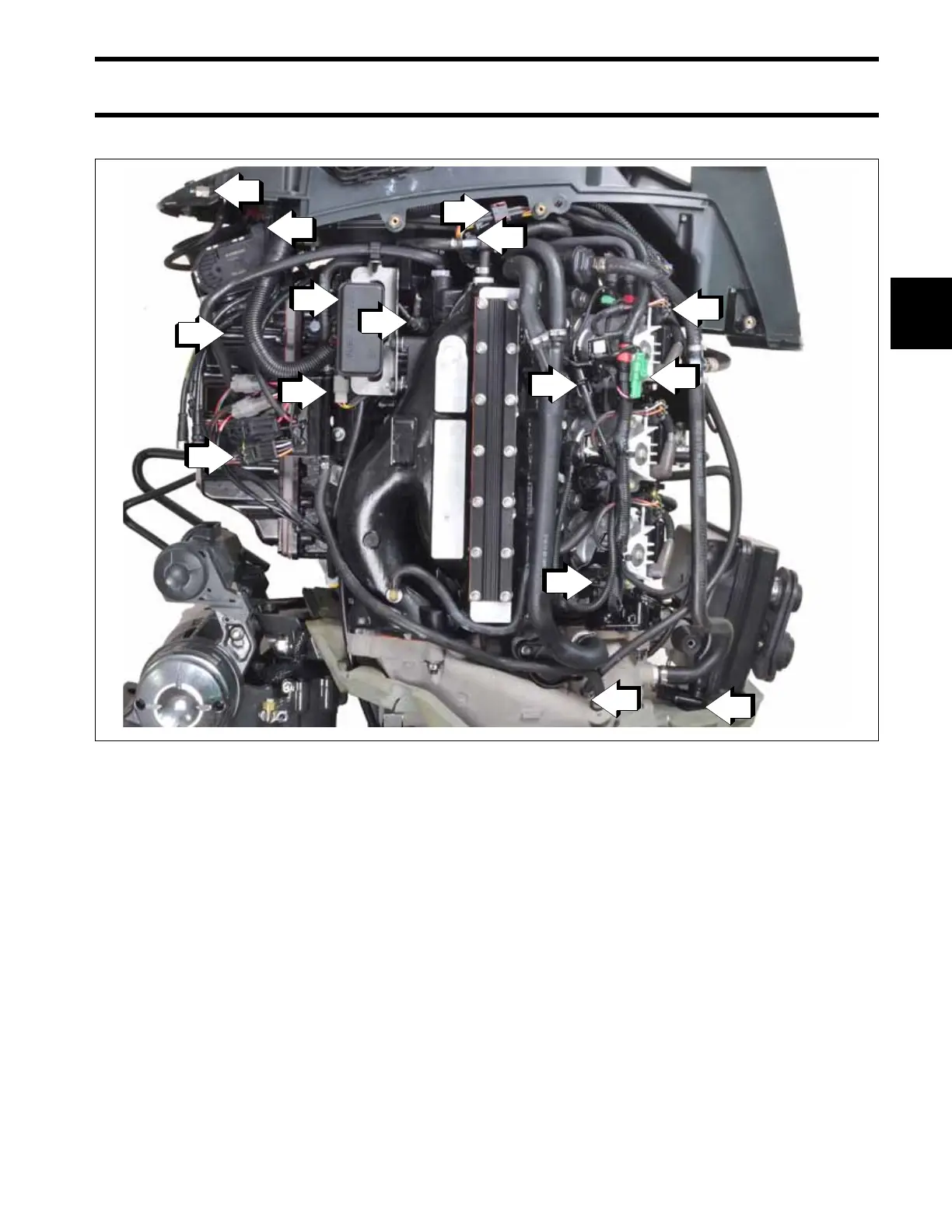

Disconnect the port side electrical connectors and hoses.
1. Starter ground cable
2. Stator connector
3. Throttle body connector (remove throttle body assembly to access)
4. EMM cooling hose
5. Fuse box (remove from bracket - remove connector from back of box)
6. Air temperature sensor connector
7. Engine grounds
8. Ignition coil connectors (3X)
9. Shift actuator connector
10. Knock sensor connector
11. Temperature sensor connector
12. Dynamic power steering module connector (lower connector only)
13. Fuel injector connectors (3X)
14. Exhaust temperature sensor connector
15. Exhaust back pressure hose
009175
