BRP Evinrude E-TEC G2 - Page 98

98
Engine and Control Systems
EMM Servicing

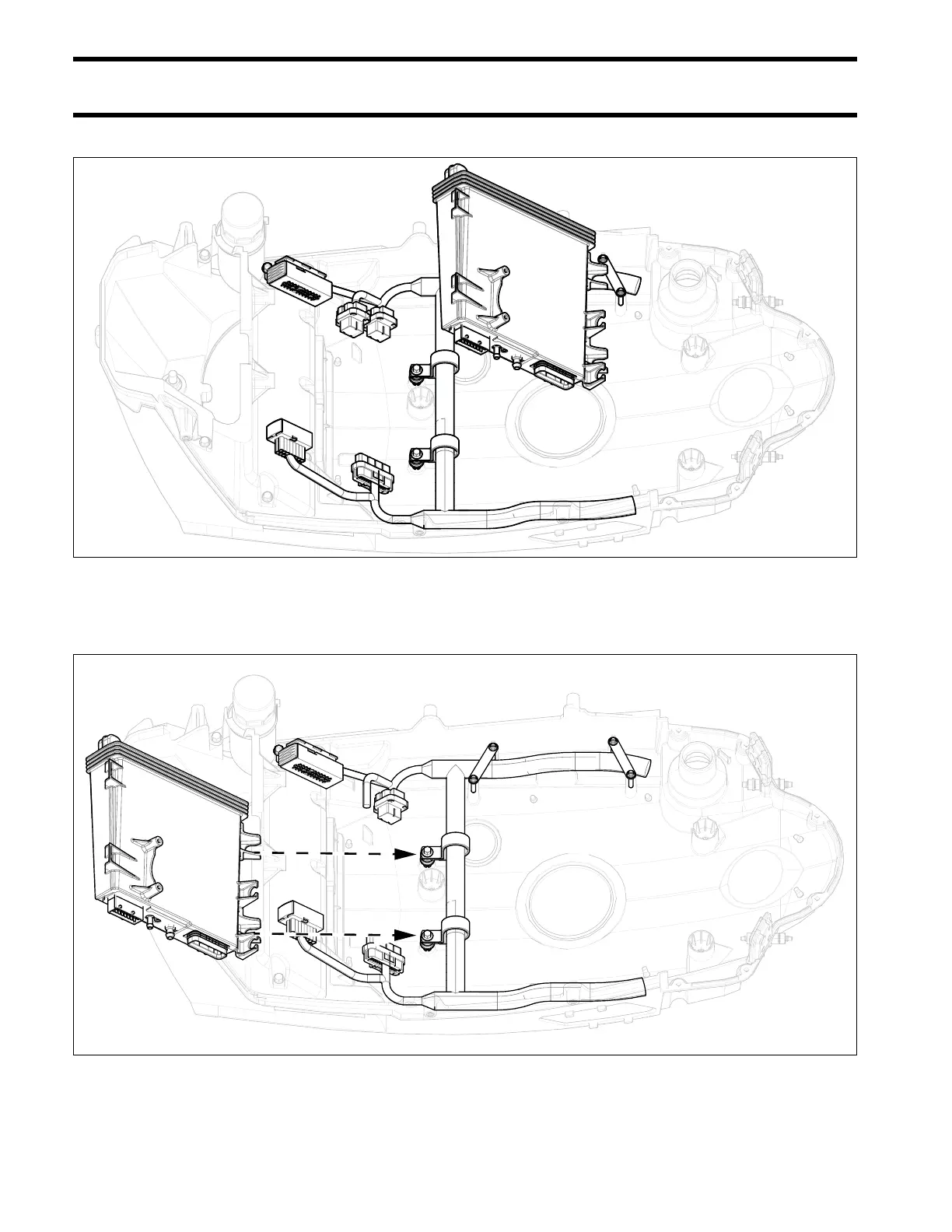

Remove EMM from frame.
Installation
Align slots in bottom side of EMM case with isolator mounts on the frame. Slide EMM into position.
Install J1-A, J1-B, and J2, J3, and J4 connectors.
