Engine and Control Systems
EMM Servicing
99
4

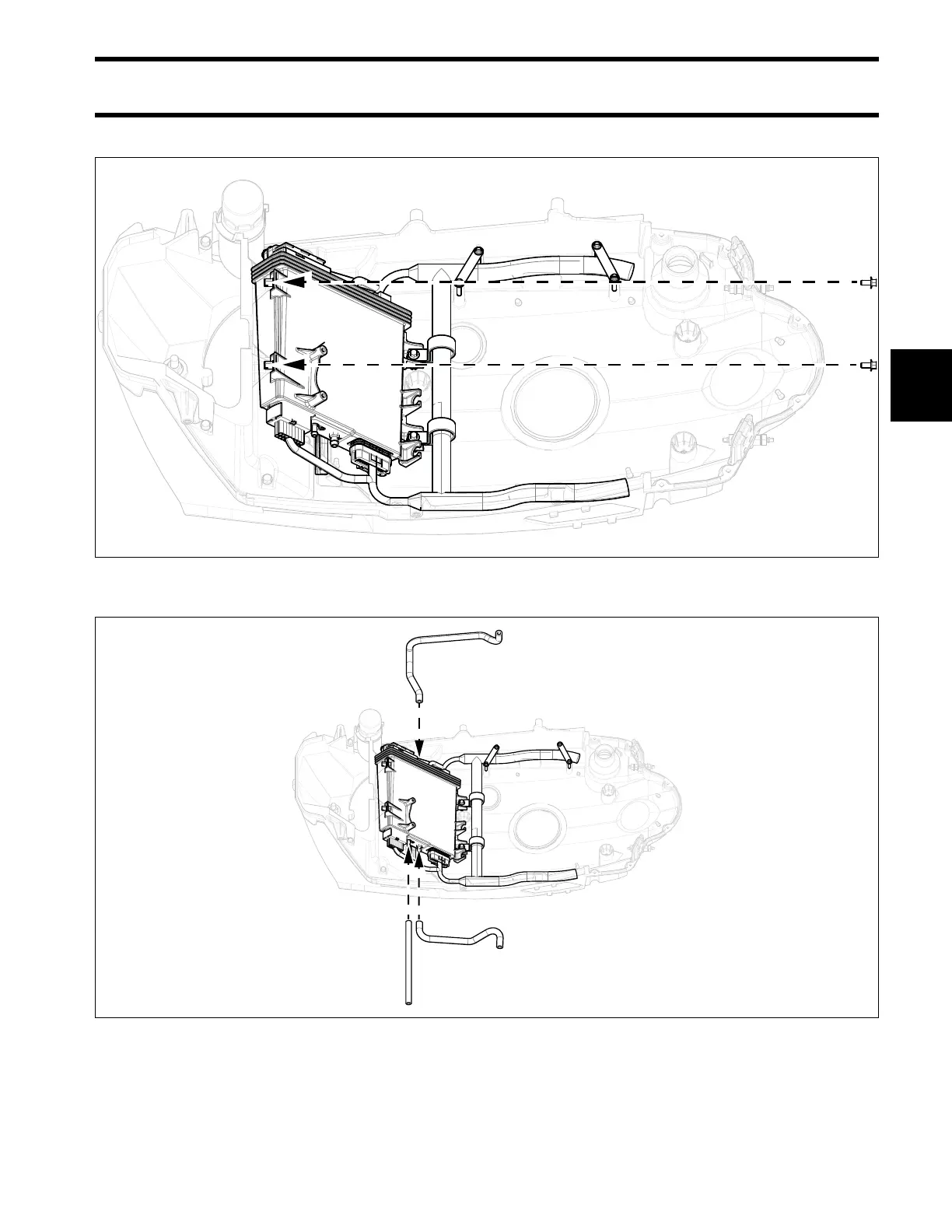

Install two EMM retaining screws. Tighten screws 12 to 16 in. lbs. (1.5 to 2 N·m).
Install exhaust pressure hose and water cooling hoses. Secure each hose with one 15.7 mm Oetiker
clamp, P/N 346786.
After the EMM is installed onto the center frame, install of the frames and engine covers.
• See Engine Cover and Frame Service on p. 55.
