Canon imageCLASS D530 - Page 103

4
4
4-27
4-27
Disassembly/Assembly > External Cover, Interior > Removing the Upper Cover (MF4820d) > Procedure
Disassembly/Assembly > External Cover, Interior > Removing the Upper Cover (MF4820d) > Procedure

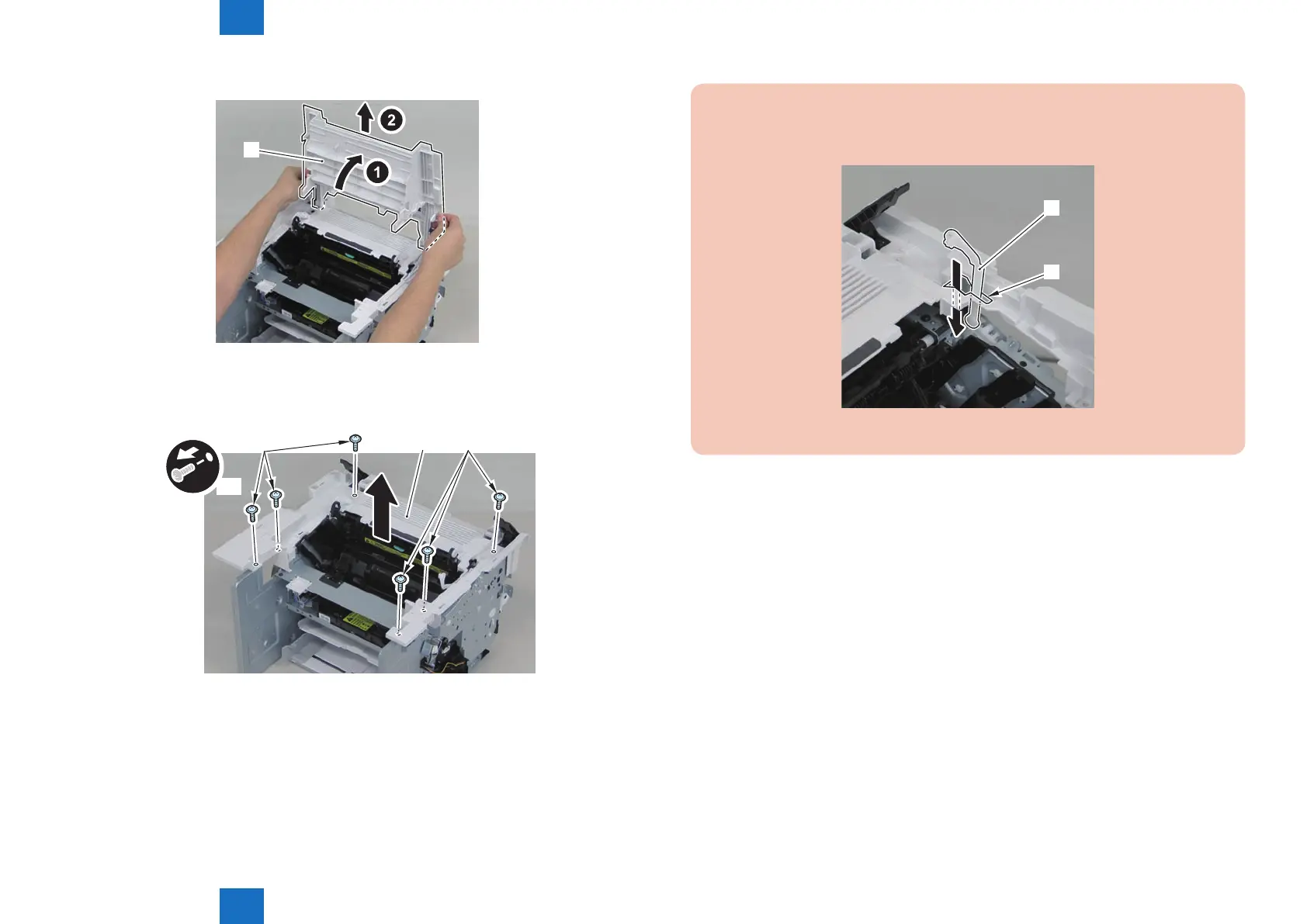

4)Raise the delivery tray[1] vertically and remove it.
[1]
5)Remove the upper cover[1]
• 6 screws(black TP)[2]
[2]
x6
[1]
[2]
F-4-57
F-4-58
Caution:
Be sure to put the cartridge arm[1] through the hole[A] of the upper cover when
installing
[1]
[A]
F-4-59
