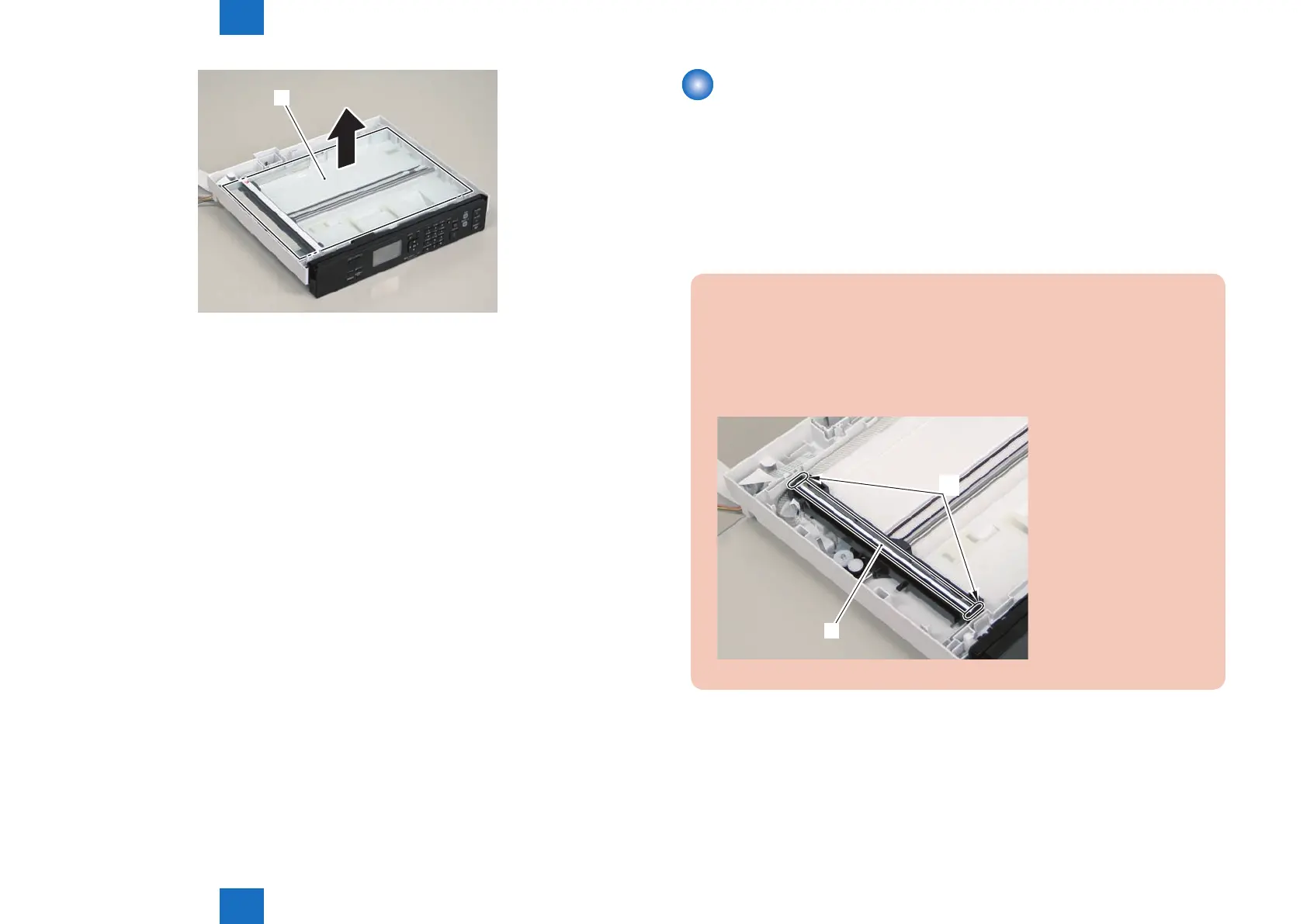

F-4-181
Removing the Flatbed Motor Unit(MF4870dn/MF4830d)
■
Preparation
1) Remove the left cover.
2)Remove the SADF unit and reader unit
3)Remove the SADF unit.
4)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the copyboard glass, take care not to lose the 2
CIS unit spacers [1].
When assembling/disassembling the copyboard glass, do not touch the copy reading
area [A] of the CIS unit.
[1]
[A]
