Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Unit (MF4890dw/MF4880dw) > Procedure

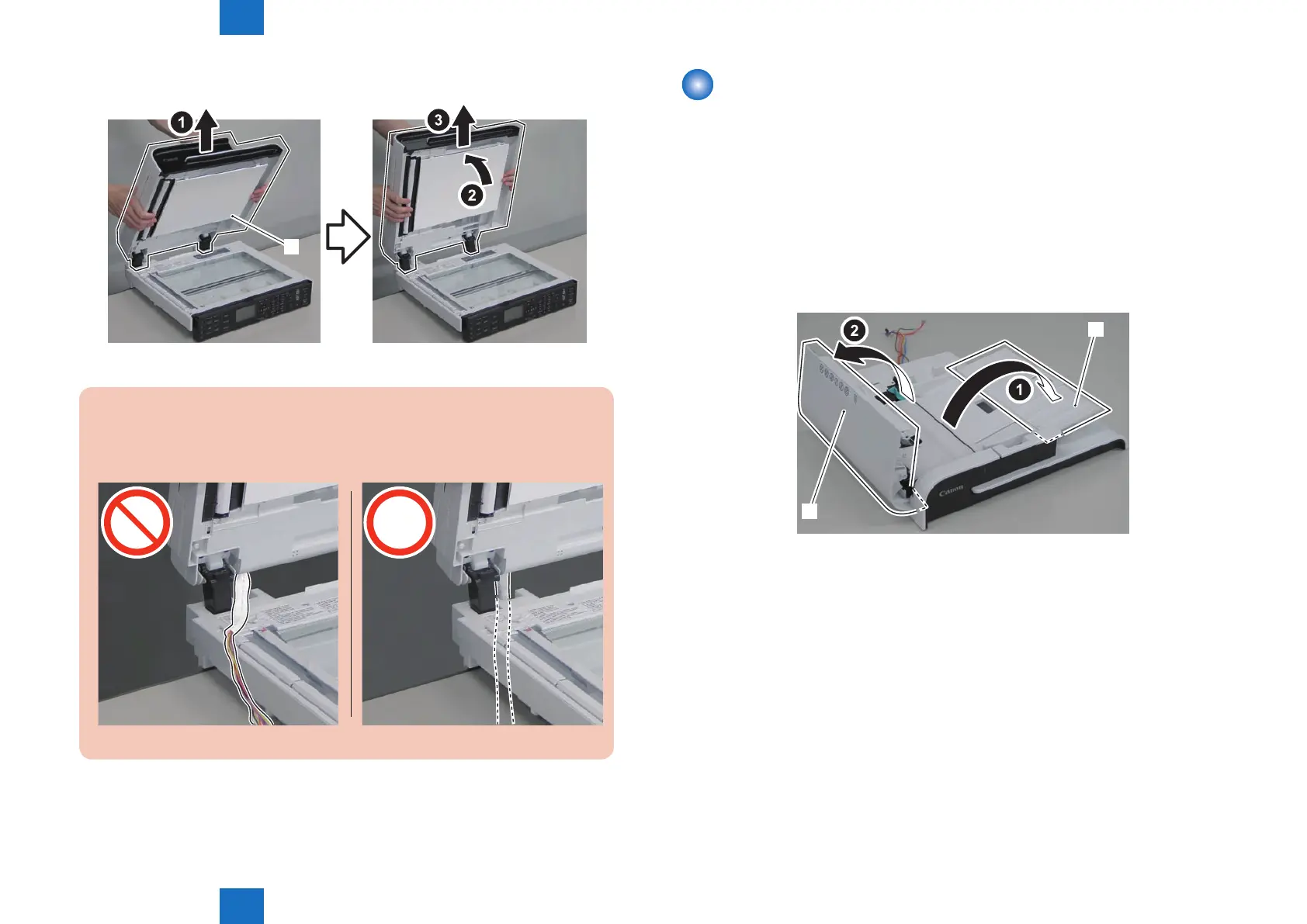

3)Remove the DADF unit[1] by lift it up and then raising it vertically.
[1]
Caution:
When installing the DADF unit , be careful not to damage the harnesses with [A]
part.
F-4-117
F-4-116
Removing the DADF Pickup Unit (MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
■
Procedure
1) Open the DADF pickup tray and DADF upper cover.
[2]
[1]
2)Remove the DADF upper front cover[2] by pushing the claw.
F-4-118
