Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (MF4890dw/MF4880dw) > Procedure

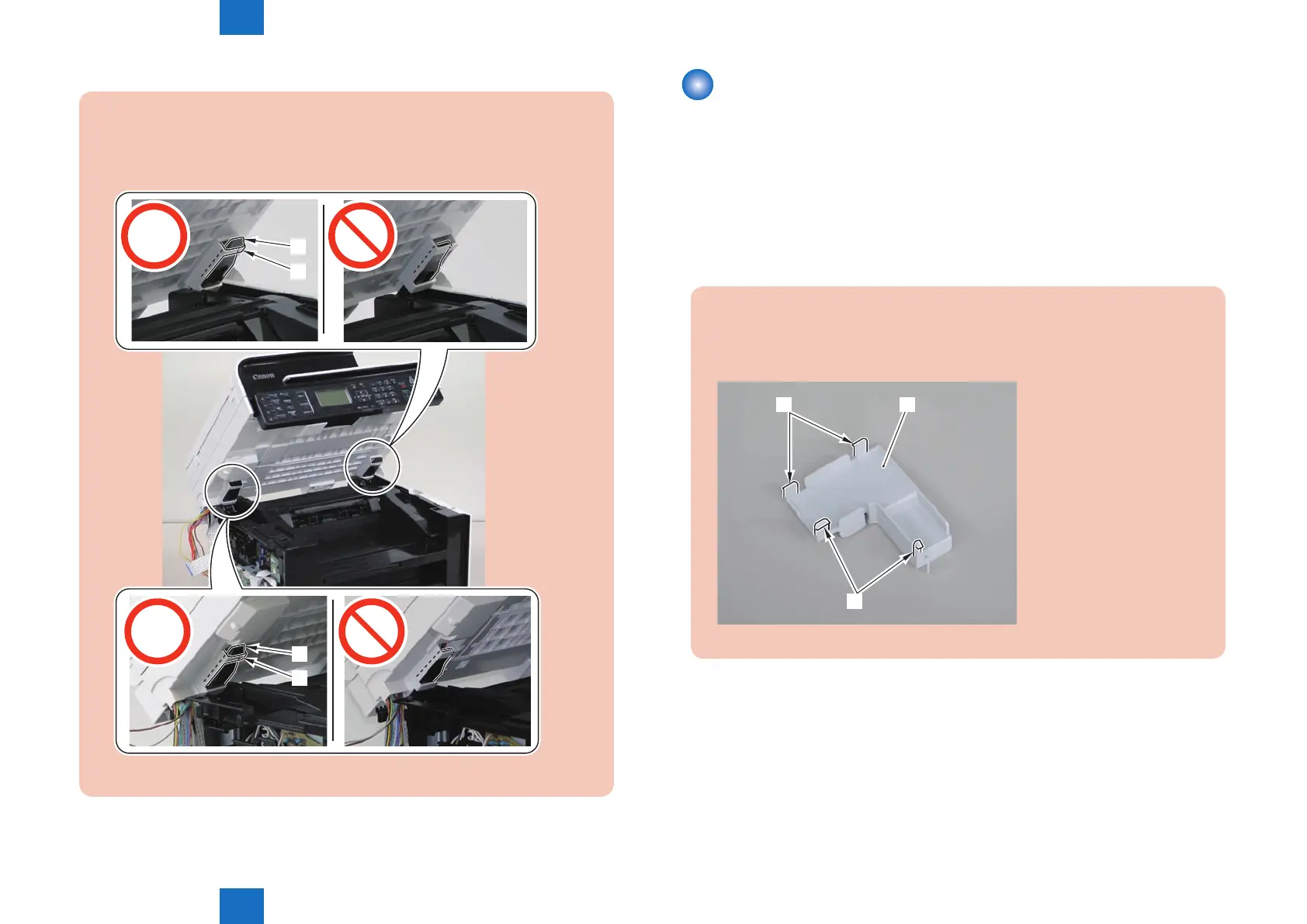

Caution:
When installing the DADF unit and reader unit, secure the 2 hinge arm claws[1] to
the 2 hooks[2] of the reader unit.
[2]
[1]
[2]
[1]
Removing the DADF Unit (MF4890dw/MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
■
Procedure
1) Remove the connector cover[1] and plate[2] , and remove the harness from the guide[A].
• 4 claws[3]
Caution:
When placing the removed copyboard cover and reader unit on the desk, oor,
etc.,be careful not to get the at cable and harnesses trapped under them.
[1][3]
[3]
