Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF CIS Unit(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF CIS Unit(MF4890dw/MF4880dw) > Procedure

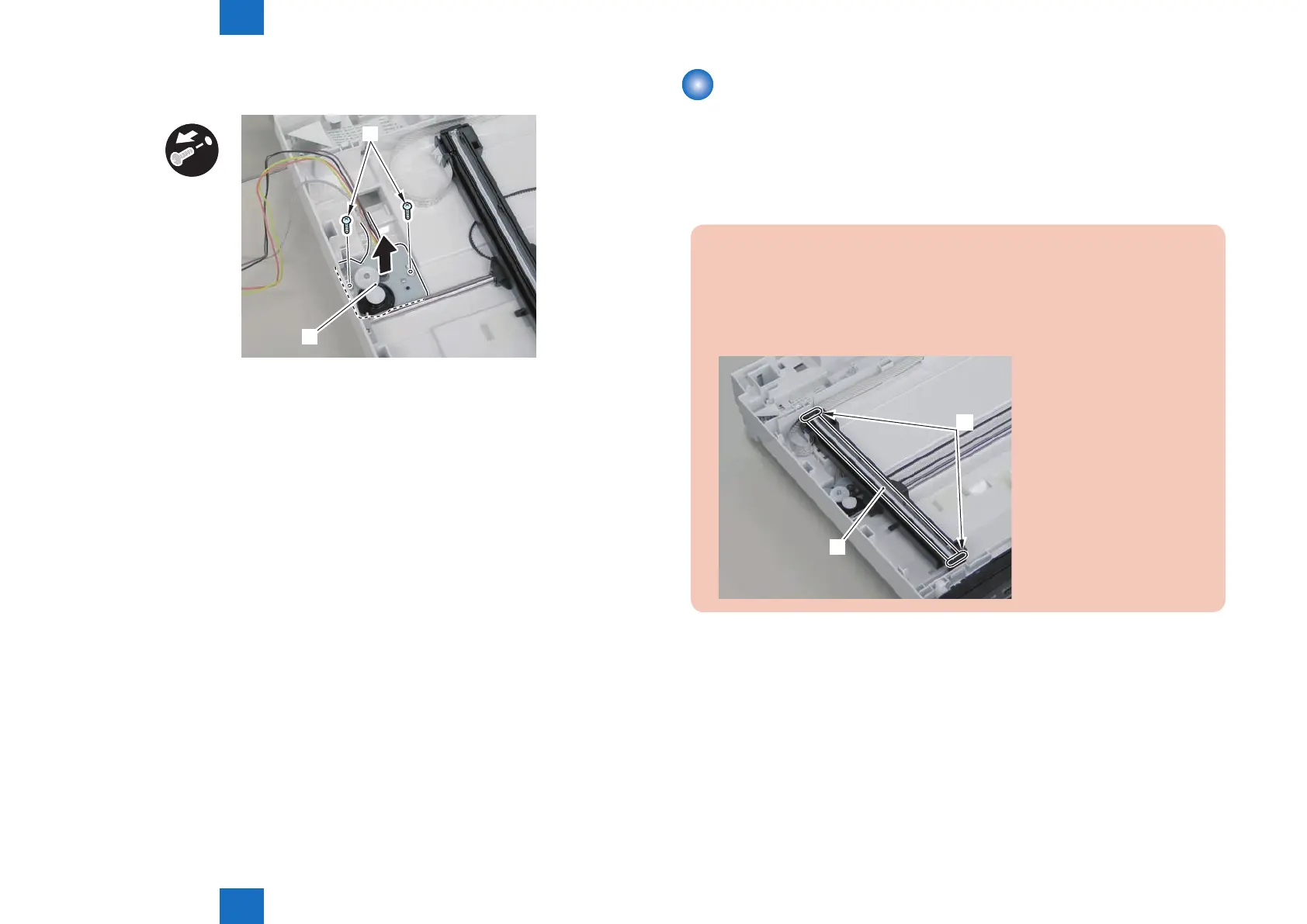

5)Remove the atbed motor unit[1]
• 2 screws[2]
x2
[1]
[2]
F-4-147
Removing the DADF CIS Unit(MF4890dw/MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the CIS unit, take care not to lose the 2 CIS unit
spacers [1].
When assembling/disassembling the CIS unit, do not touch the copy reading area [A]
of the CIS unit.
[1]
[A]
