Removing the Duplex Feed Unit (MF4870dn/MF4830d)
■
Preparation
1) Remove the left cover
2)Remove the SADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1)Open the rear cover[1], and remove the duplex guide[2]
• 2 claws[3]
x2
[1]
[3]
[2]

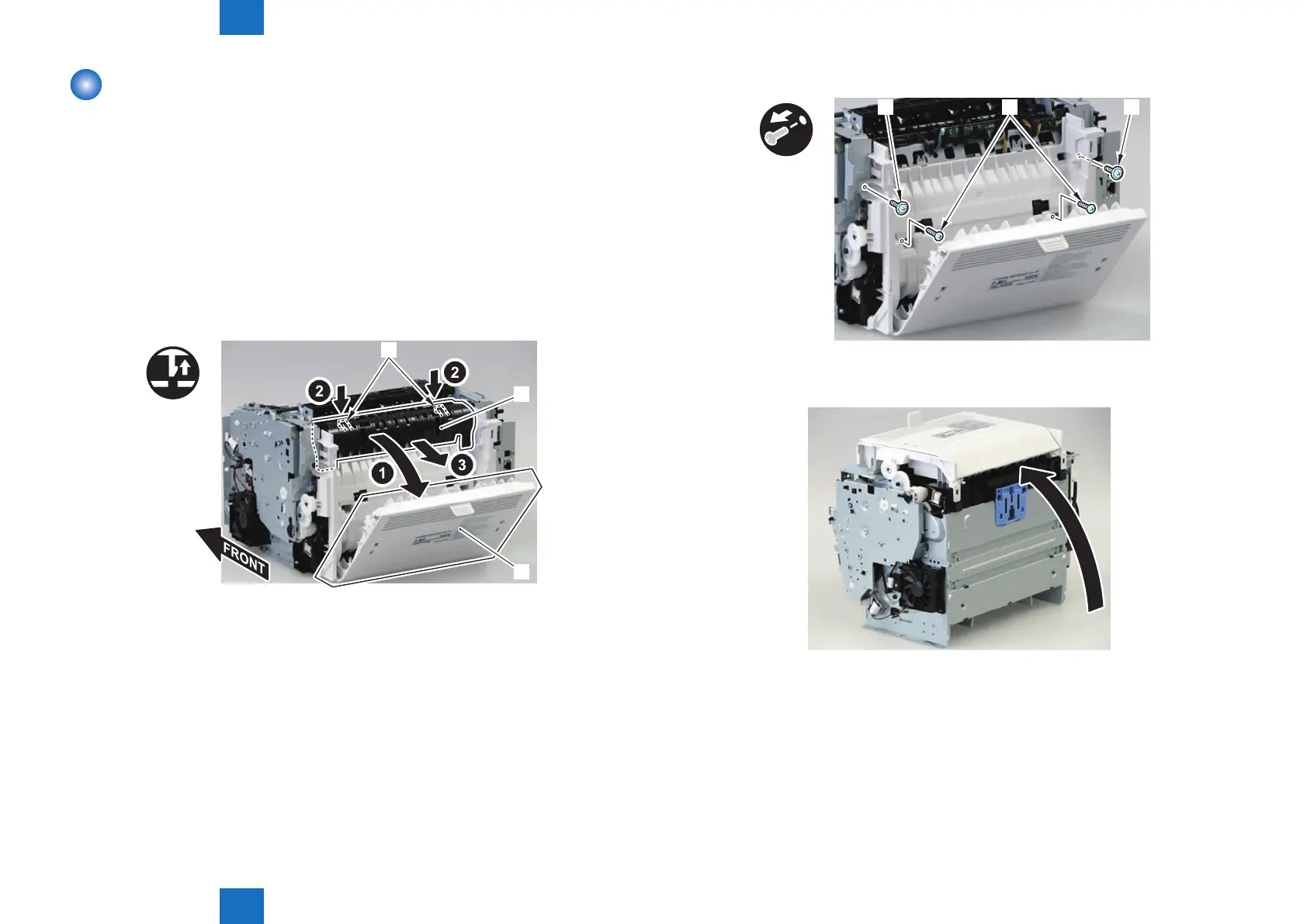

F-4-919
2) Remove the 2 screws (TP) [1] and 2 screws (tapping) [2] using a stubby screwdriver.
x4
[1][1]
[2]
3) Close the rear cover.
4) Face the front of the host machine downwards.
F-4-920
F-4-921
