Canon imageCLASS D530 - Reader Unit; Duplex Printer Unit

4
4
4-12
4-12

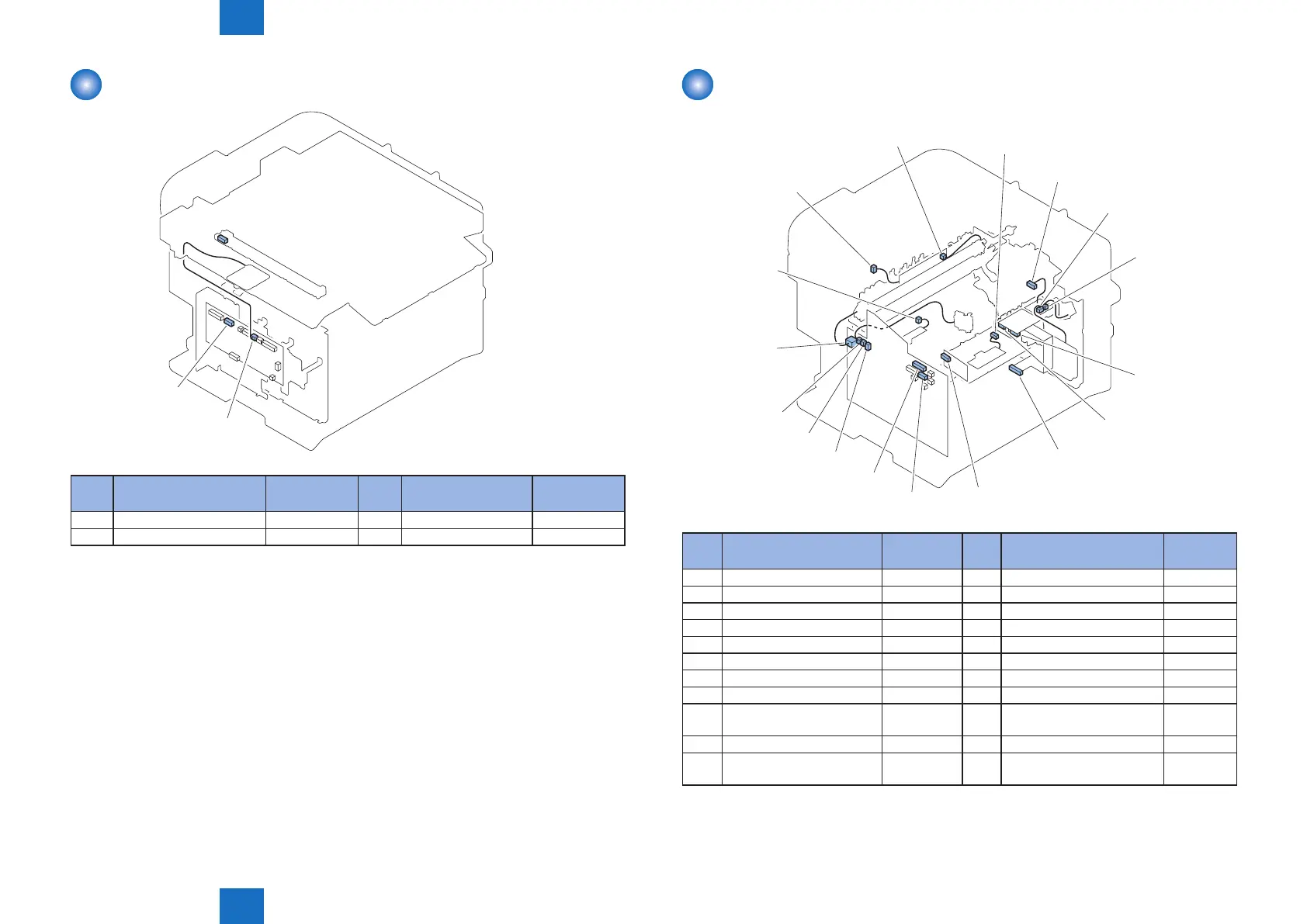

Disassembly/Assembly > List of Connectors > Duplex Printer Unit
Disassembly/Assembly > List of Connectors > Duplex Printer Unit
Reader Unit
J5
J11
J No. Name
Relay
Connector
J No. Name Remarks
J5 Main Controller PCB - - CIS UNIT -
J11 Main Controller PCB - J11 Reader Motor -
F-4-17
T-4-3
Duplex Printer Unit
J701
J552
J101
J702
J802
J1154
J542
J801
J1153
J571
J562
J751
J551
J1102
J1103
J1101
J1151
J No. Name
Relay
Connector
J No. Name Remarks
J1101 Duplex Driver PCB - J1154 Motor Driver PCB -
J1102 Duplex Driver PCB - J1102 Duplex Solenoid -
J1103 Duplex Driver PCB - J1103 Main Fan Unit -
J1151 Motor Driver PCB - J571 Engine Controller PCB -
J1153 Motor Driver PCB - J802 Laser Scanner Motor -
J801 Laser Driver PCB - J542 Engine Controller PCB -
J101 Engine Controller PCB - - Fixing Film Unit -
J551 Engine Controller PCB - J751 Paper Leading Edge Sensor -
J552 Engine Controller PCB - J701 Fixing Delivery/Paper Width
Sensor PCB
-
J562 Engine Controller PCB - J562 Pickup Solenoid -
J702 Fixing Delivery/Paper Width
Sensor PCB
- - Fixing Film Unit -
F-4-18
T-4-4
