Canon imageCLASS D530 - Removing the Toner Sensor and Multi Pickup Sensor Unit (Mf4820 D)

4
4
4-189
4-189
Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4820d) > Procedure
Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4820d) > Procedure
Note:

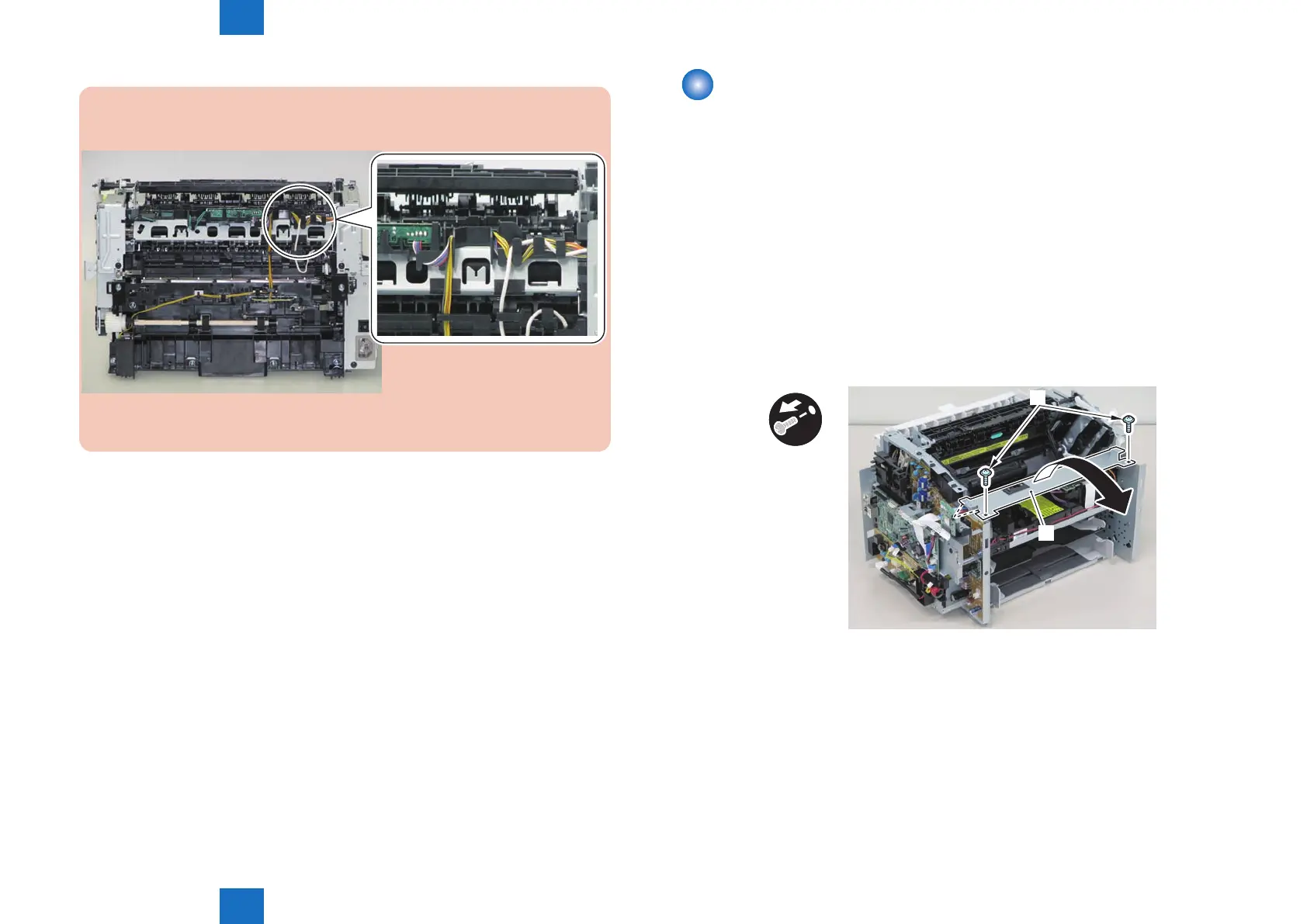

The below picture shows how to wind the harness.
F-4-482
Removing the Toner Sensor and Multi Pickup Sensor
Unit (MF4820d)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1)Remove the scanner cover[1]
• 2 screws(black TP)[2]
x2
[1]
[2]
F-4-483
