Disassembly/Assembly > Controller System > Removing the Main Motor (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Controller System > Removing the Main Motor (MF4870dn/MF4830d) > Procedure
Removing the Main Motor (MF4870dn/MF4830d)
■
Preparation
1) Remove the left cover
2)Remove the SADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure

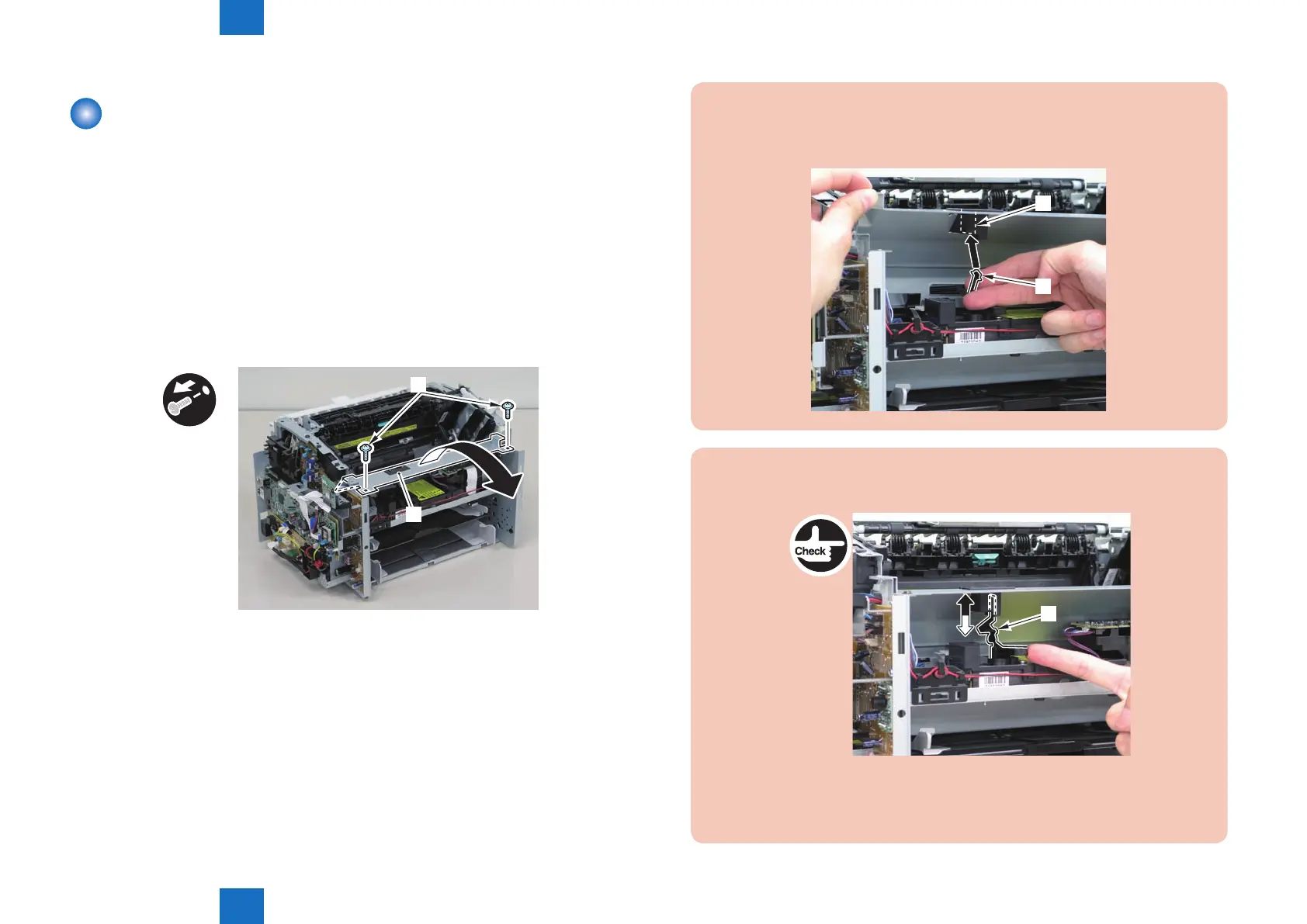

1) Remove the scanner cover[1]
• 2 screws(black TP)[2]
[1]
x2
[2]
F-4-386
Caution:
When mounting the scanner cover, pass the shutter open/close lever [1] through the
hole [A] in the scanner cover.
[1]
[A]
F-4-387
Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-388
