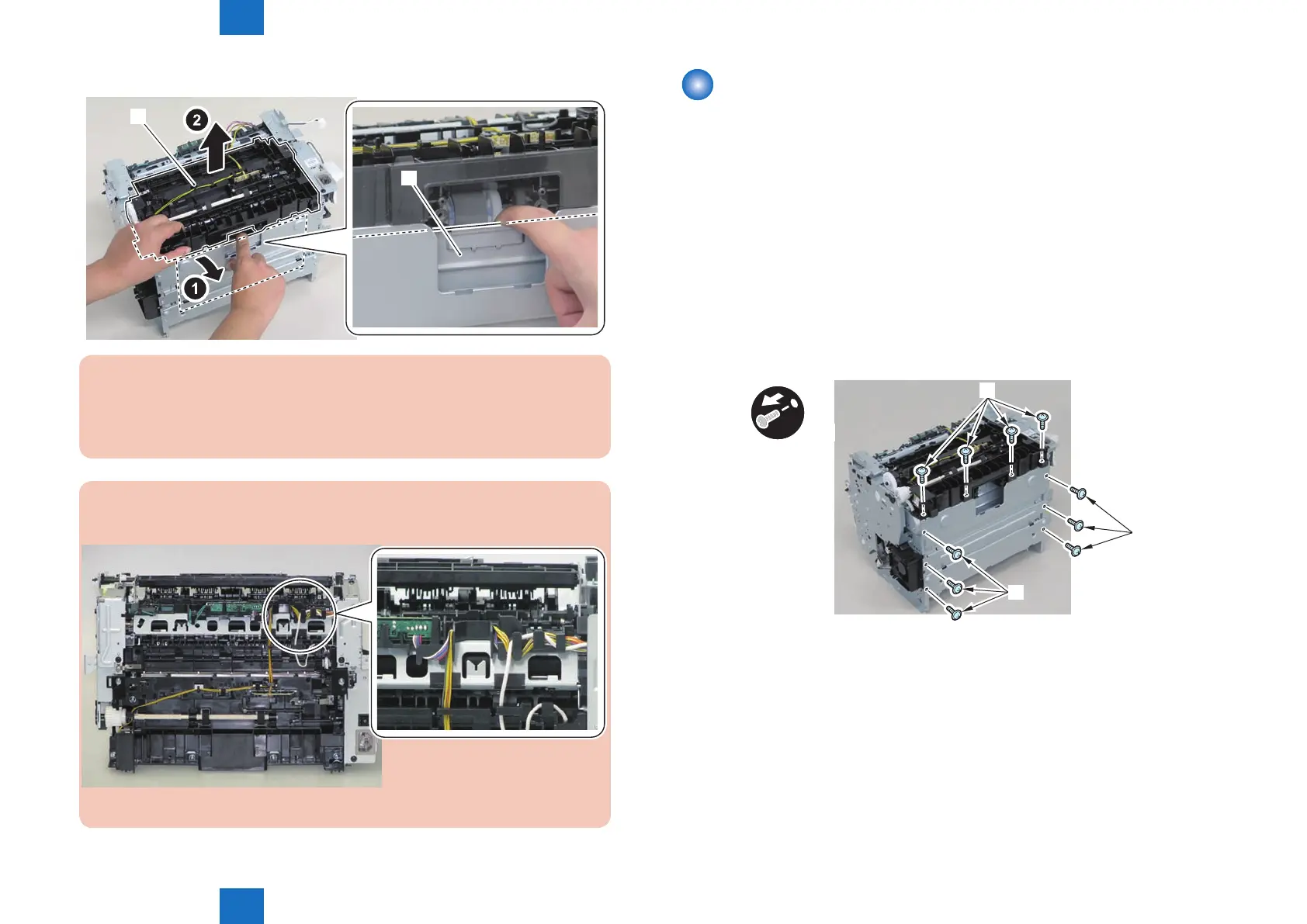

Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4820d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4820d) > Procedure
9)Remove the pickup unit[2] while opening the pickup tray[1]
[2]
[1]
Caution:
When installing/removing the pickup unit, be sure to do so while opening the pickup
tray.
Note:
The below picture shows how to wind the harness.
F-4-938
F-4-937
Removing the Pickup Tray Unit (MF4820d)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit
7)Remove the separation pad
■
Procedure
1)Remove the 4 screws(black TP)[1] and 6 screws[2].
x10
[2]
[2]
[1]
2) Remove the pickup tray unit [1].
• 2 boss holes [2]
• 2 hooks [3]
• 2 bosses [4]
F-4-939
