Disassembly/Assembly > Image Formation System > Removing the Transfer Roller (MF4780w/MF4770n/MF4750/MF4730) > Procedure
Disassembly/Assembly > Image Formation System > Removing the Transfer Roller (MF4780w/MF4770n/MF4750/MF4730) > Procedure

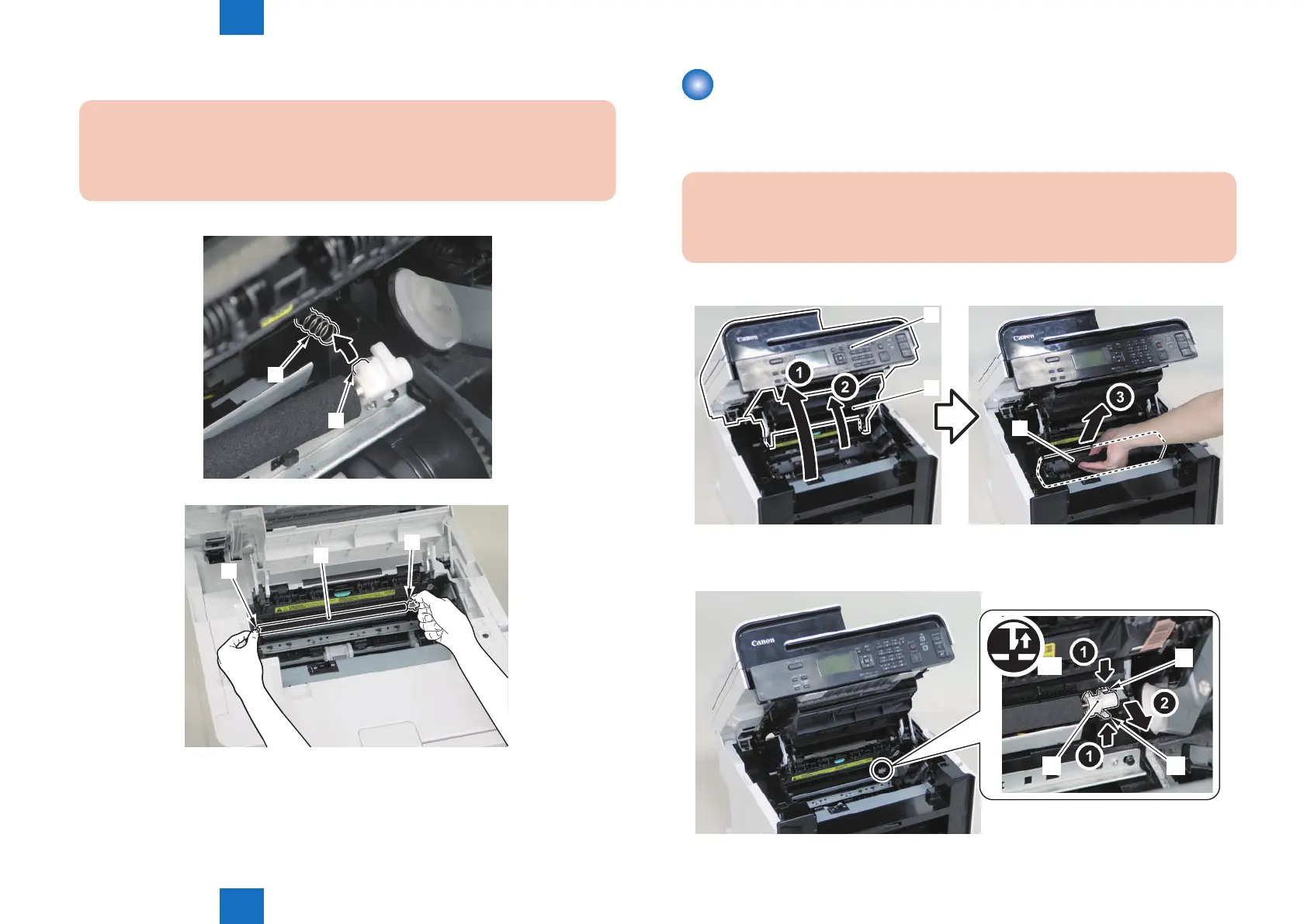

3) Hold both shafts [1] of the transfer roller and remove the roller [2].
Caution:
When installing the transfer roller to the host machine, be sure to t the protrusion[2]
to the spring[1]
[1]
[2]
[1]
[2]
[1]
F-4-771
F-4-772
Removing the Transfer Roller (MF4780w/MF4770n/
MF4750/MF4730)
■
Procedure
Caution:
When assembling/disassembling the transfer roller, do not touch the surface of the
roller.
1) Open the reader unit [1] and delivery tray [2], and remove the drum unit[3].
[2]
[1]
[3]
2) Remove the transfer roller bushing [1].
• 2 claws [2]
]
[1]
[1]
[2]
[2]
x2
F-4-773
F-4-774
