Removing the Pickup Roller (MF4890dw/MF4880dw)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit
7)Remove the separation pad
8)Remove the pickup tray unit
■
Procedure

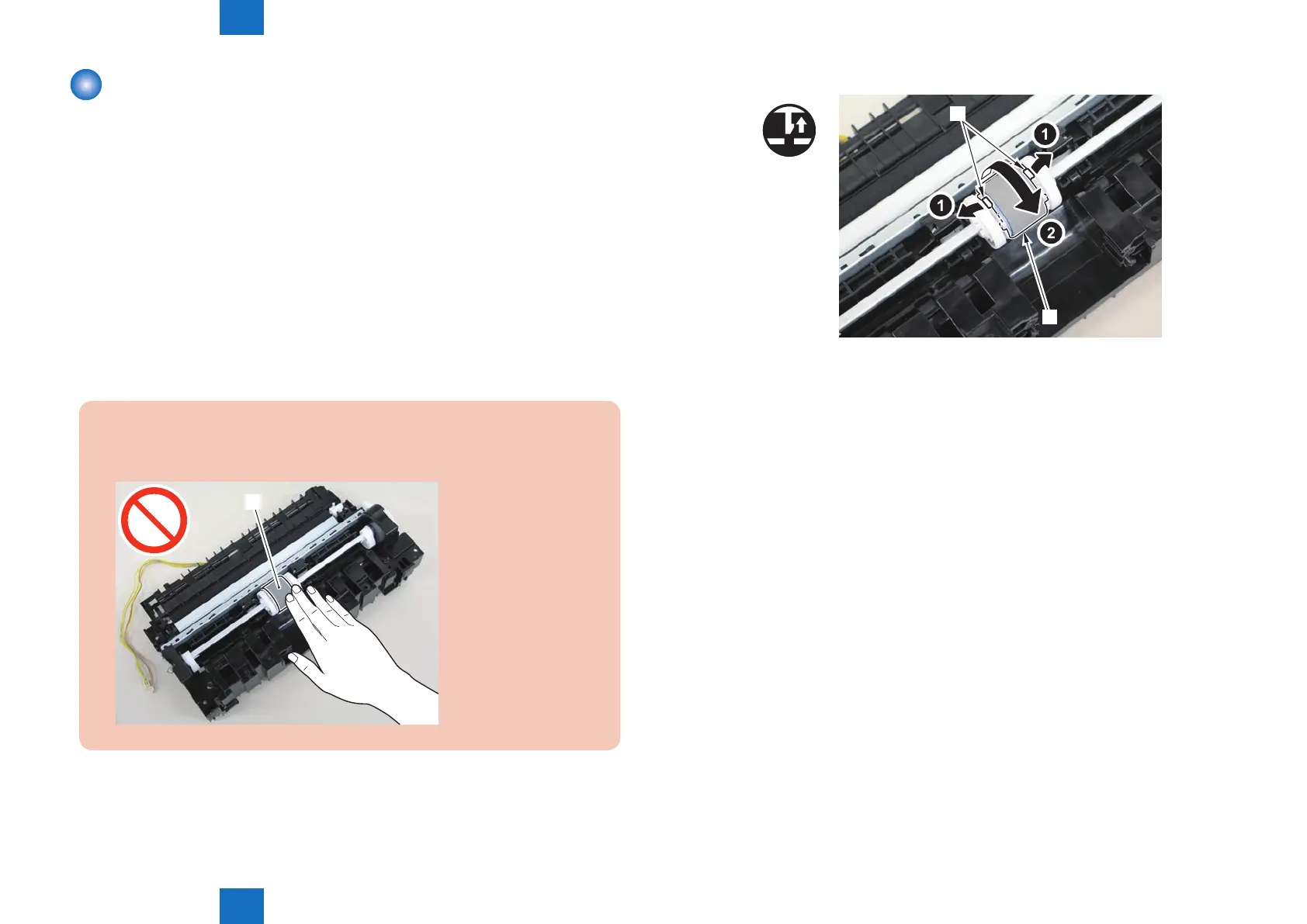

1)Remove the pickup roller[1]
• 2 claws[2]
Caution:
Do not touch the surface of the roller.
[1]
x2
[1]
[2]
F-4-877
