Removing the Speaker (MF4870dn)
■
Preparation
1) Remove the left cover
2)Remove the right cover
3)Remove the front cover unit
■
Procedure

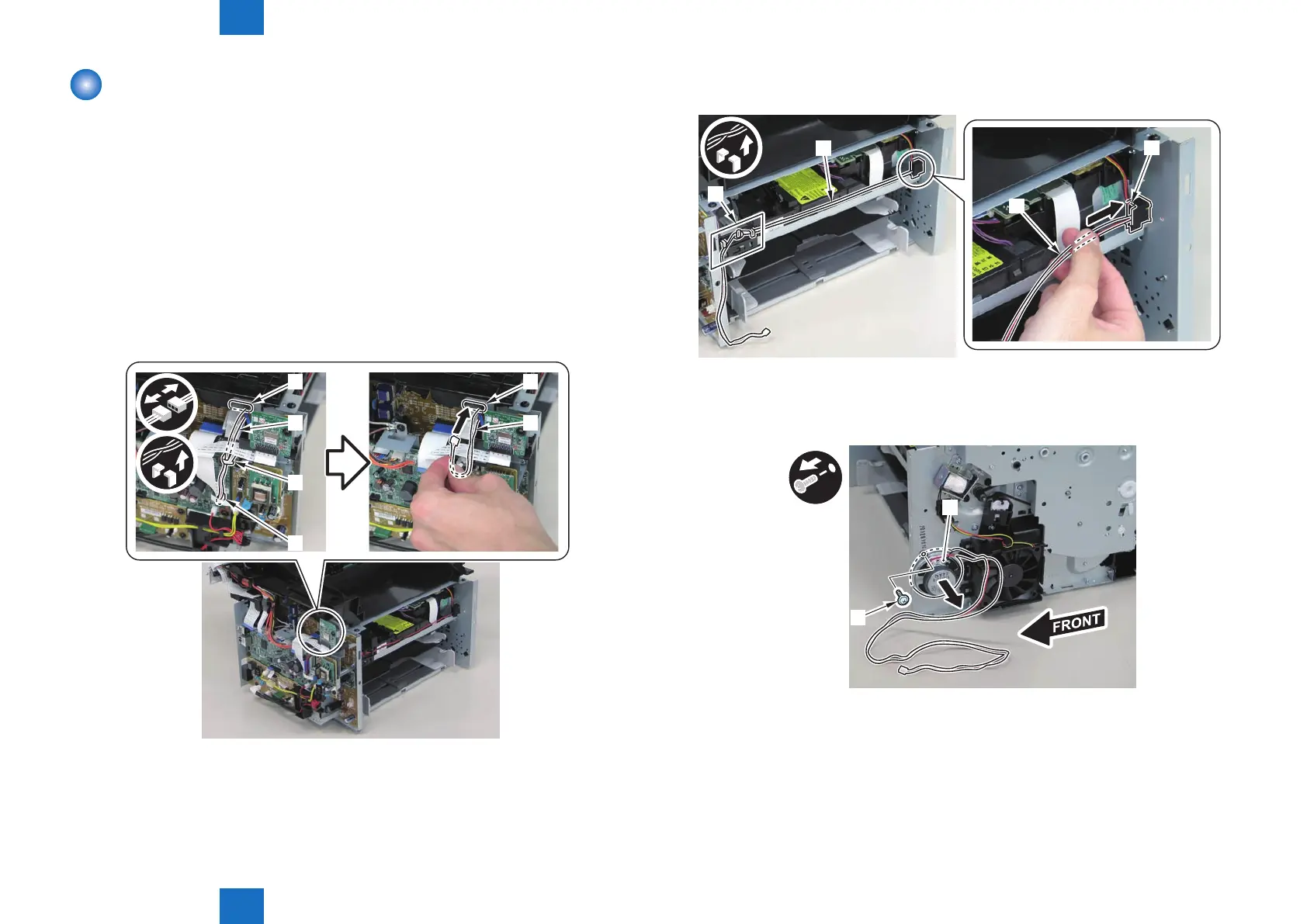

1)Disconnect the speaker harness[1], and put it through the hole[A] of the left side plate to the
inside.
• 1 connector[2]
• 1 wire saddle[3]
[1]
[2]
[3]
[A]
[1]
[A]
F-4-436
2)Free the speaker harness[1] from the harness guide[A], and put it through the hole[B] of the
right side plate to the outside.
[1]
[1]
[A]
[B]
3)Remove the speaker[1].
• 1 screw[2]
[1]
[2]
F-4-437
F-4-438
