Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Motor Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Motor Unit (L418S/L410/L190) > Procedure

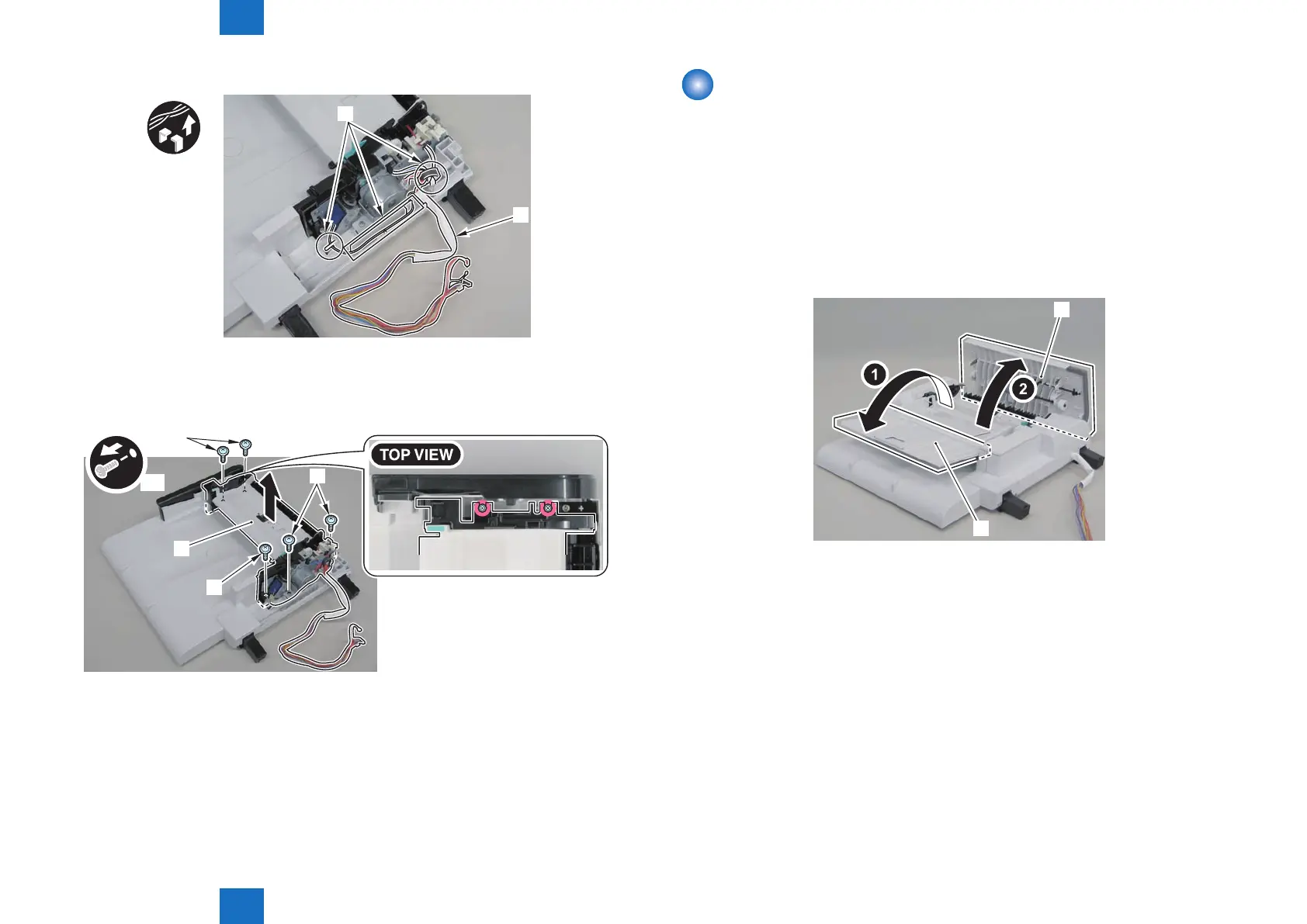

7)Remove the DADF unit communication cable[1] from the harness guide[A].
x5
[1]
[A]
8)Remove the DADF unit.
5 screws[2]
x5
[1]
[2]
[2]
[2]
F-4-286
F-4-287
Removing the DADF Motor Unit (L418S/L410/L190)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
■
Procedure
1) Open the DADF pickup tray and DADF upper cover.
[1]
[2]
2) Remove the DADF upper rear cover[1]
• 1 boss[2]
• 3 hooks[3]
F-4-288
