Removing the DADF Pickup Roller Unit (MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the pickup unit.
■
Procedure

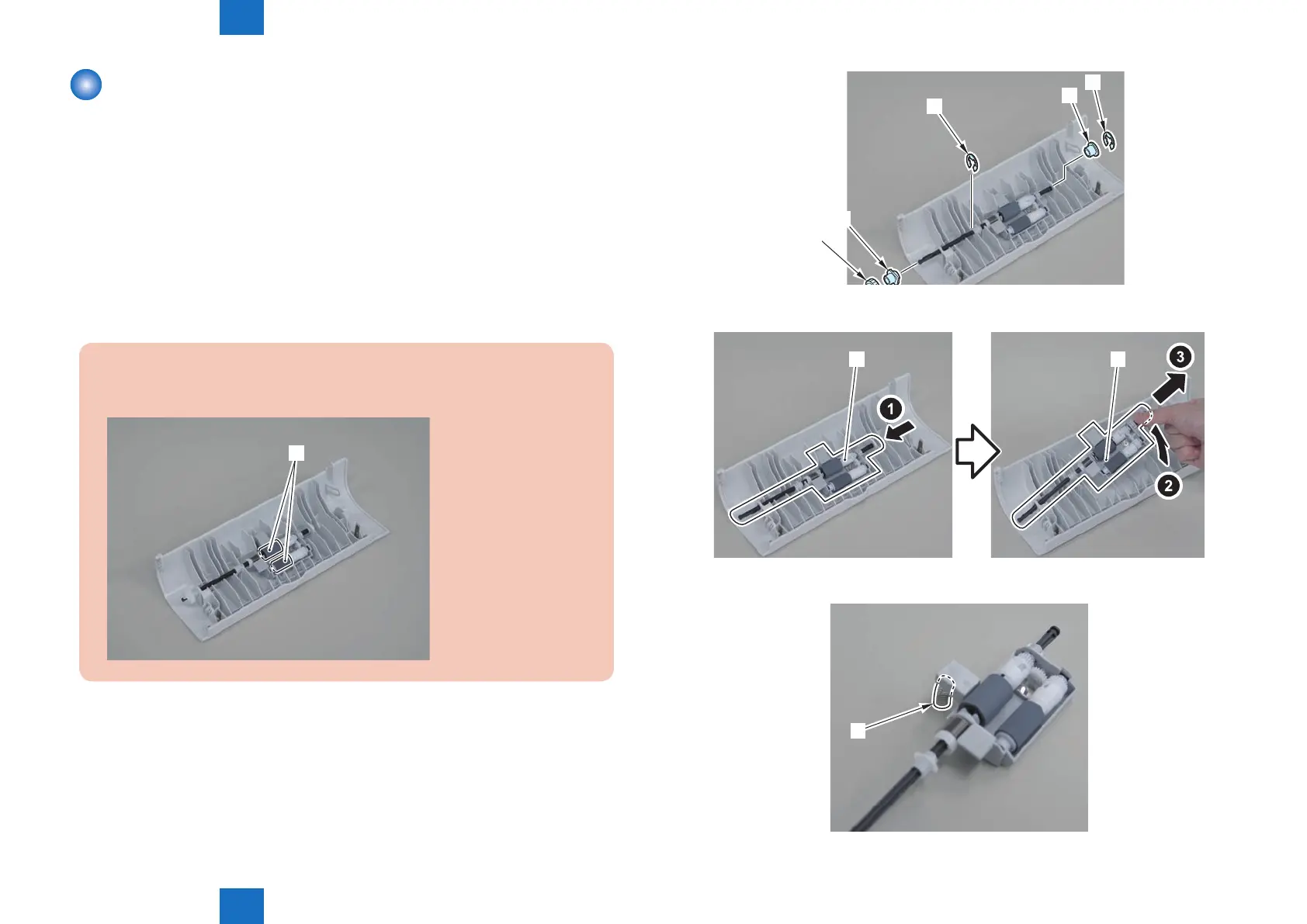

1)Remove the gear[1],bushing[2],2 e-rings[3] and bushing[4]
Caution:
Do not touch the pickup roller surface[1]
[1]
[1]
[2]
[3]
[4]
[3]
2)Remove the DADF pickup roller unit.
[1] [1]
3)Remove the spring[1] on the back side of the pickup roller unit.
[1]
F-4-130
F-4-131
F-4-132
