Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Solenoid Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Solenoid Unit (L418S/L410/L190) > Procedure
[1]
[2]
[3]
[3]
3)Remove the DADF motor[1]
• 1 connector[2]
• 1 screw[3]
[1]
[2]
[3]
F-4-289
F-4-290

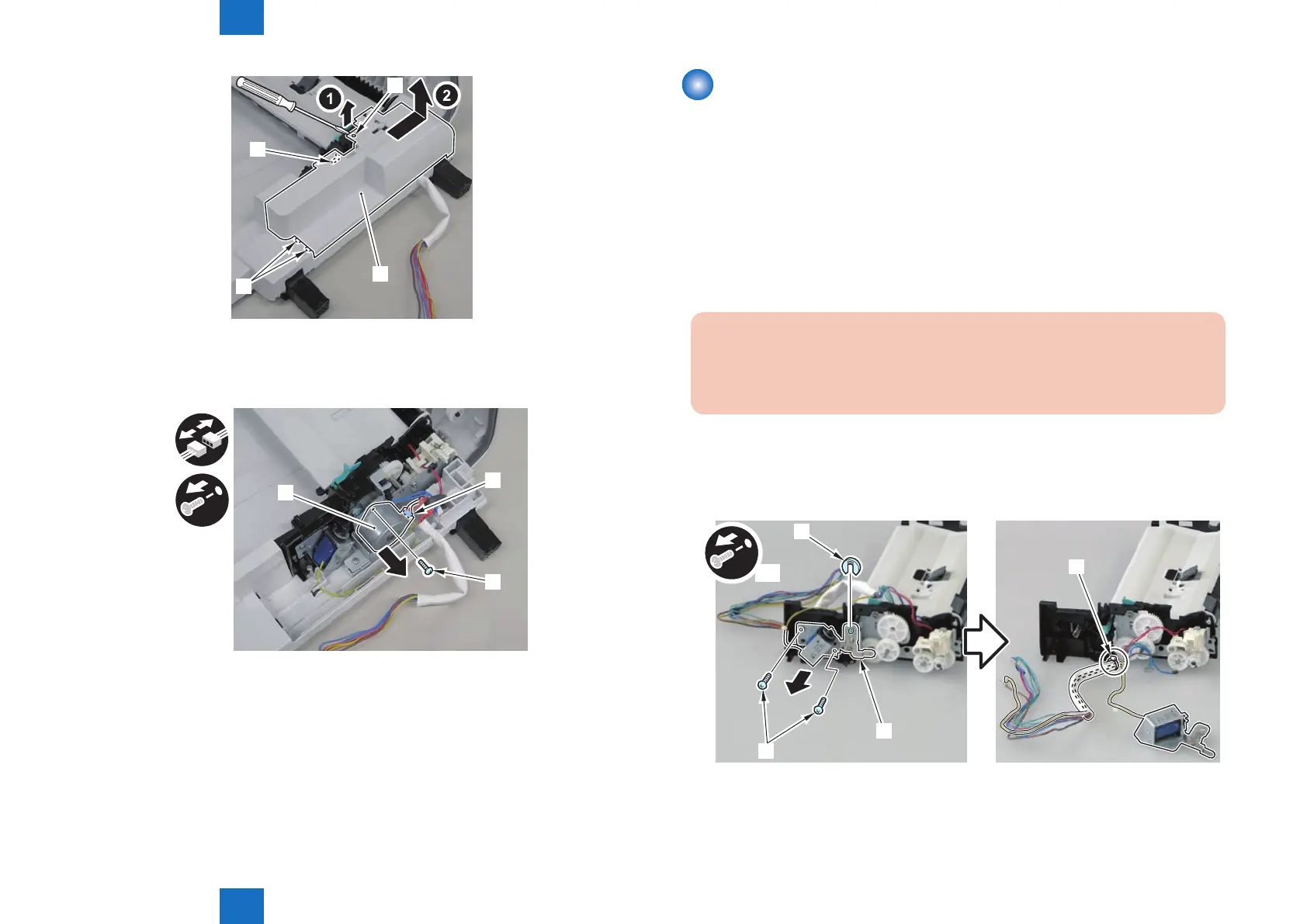

Removing the DADF Solenoid Unit (L418S/L410/L190)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the DADF pickup unit.
5)Remove the DADF motor unit.
■
Procedure
Caution:
Gently remove the DADF solenoid unit to prevent the gear phase from becoming
displaced.
1) Remove the DADF solenoid unit [1].
• 1 e-ring [2]
• 2 screws [3]
• 1 harness band [4]
[4]
x2
[2]
[3]
[1]
F-4-291
