Canon imageCLASS D530 - Removing the Pickup Roller (Mf4780 W;Mf4770 N;Mf4750;Mf4730)

4
4
4-367
4-367
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Roller (MF4780w/MF4770n/MF4750/MF4730) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Roller (MF4780w/MF4770n/MF4750/MF4730) > Procedure

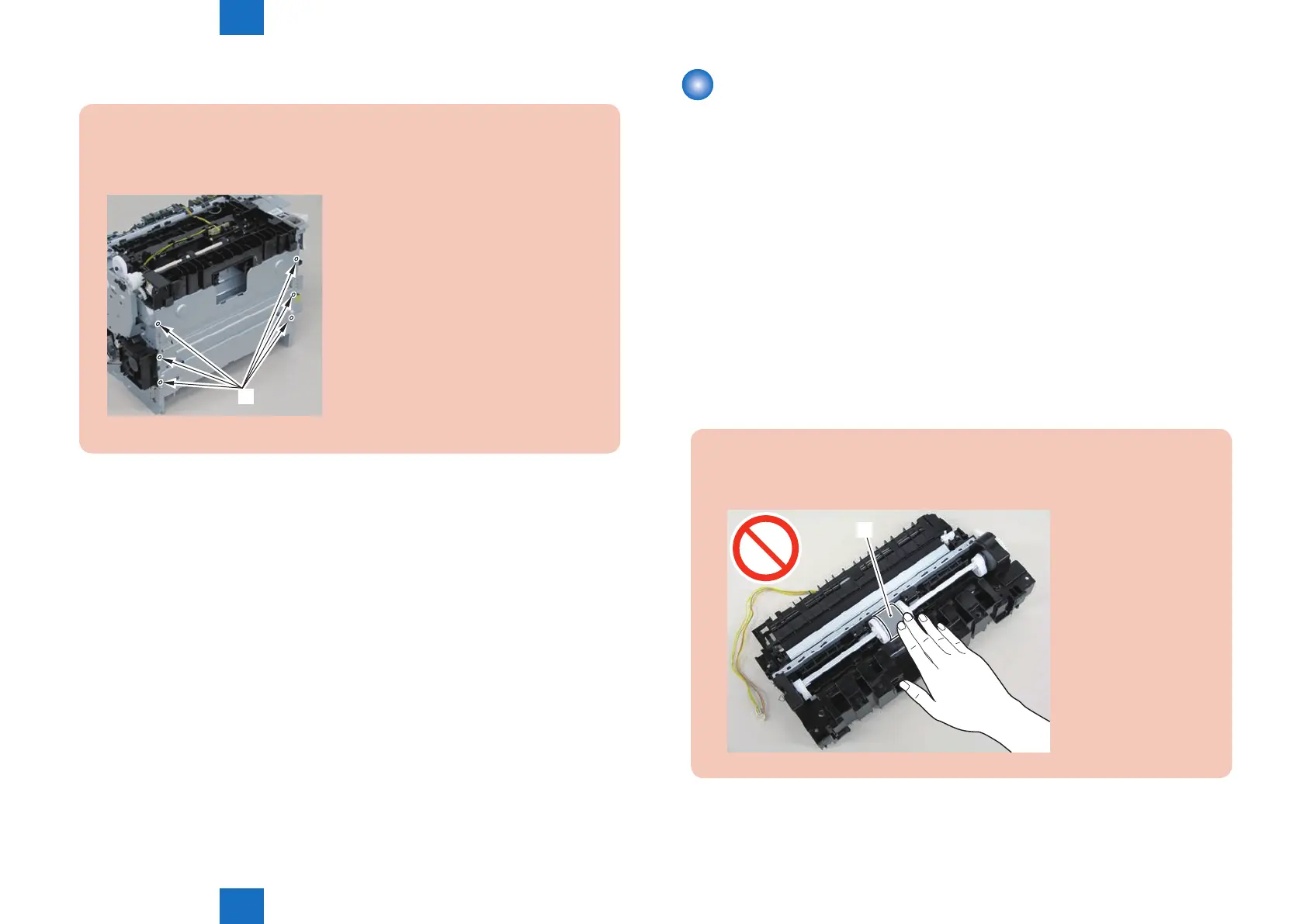

Caution:
When assembling the pickup tray unit, check the positioning of the 6 bosses [1] in the
unit.
[1]
Removing the Pickup Roller (MF4780w/MF4770n/
MF4750/MF4730)
■
Preparation
1) Remove the left cover
2)Remove the SADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit
7)Remove the separation pad
8)Remove the pickup tray unit
■
Procedure
1)Remove the pickup roller[1]
• 2 claws[2]
Caution:
Do not touch the surface of the roller.
[1]
