Removing the Laser Scanner Unit (MF4820d)
■
Preparation
1)Remove the left cover.
2)Remove the copyboard cover and reader unit.
3)Remove the right cover.
4)Remove the front cover unit.
5)Remove the upper cover
■
Procedure
Caution:
Do not disassemble the laser scanner unit because adjustment is required.

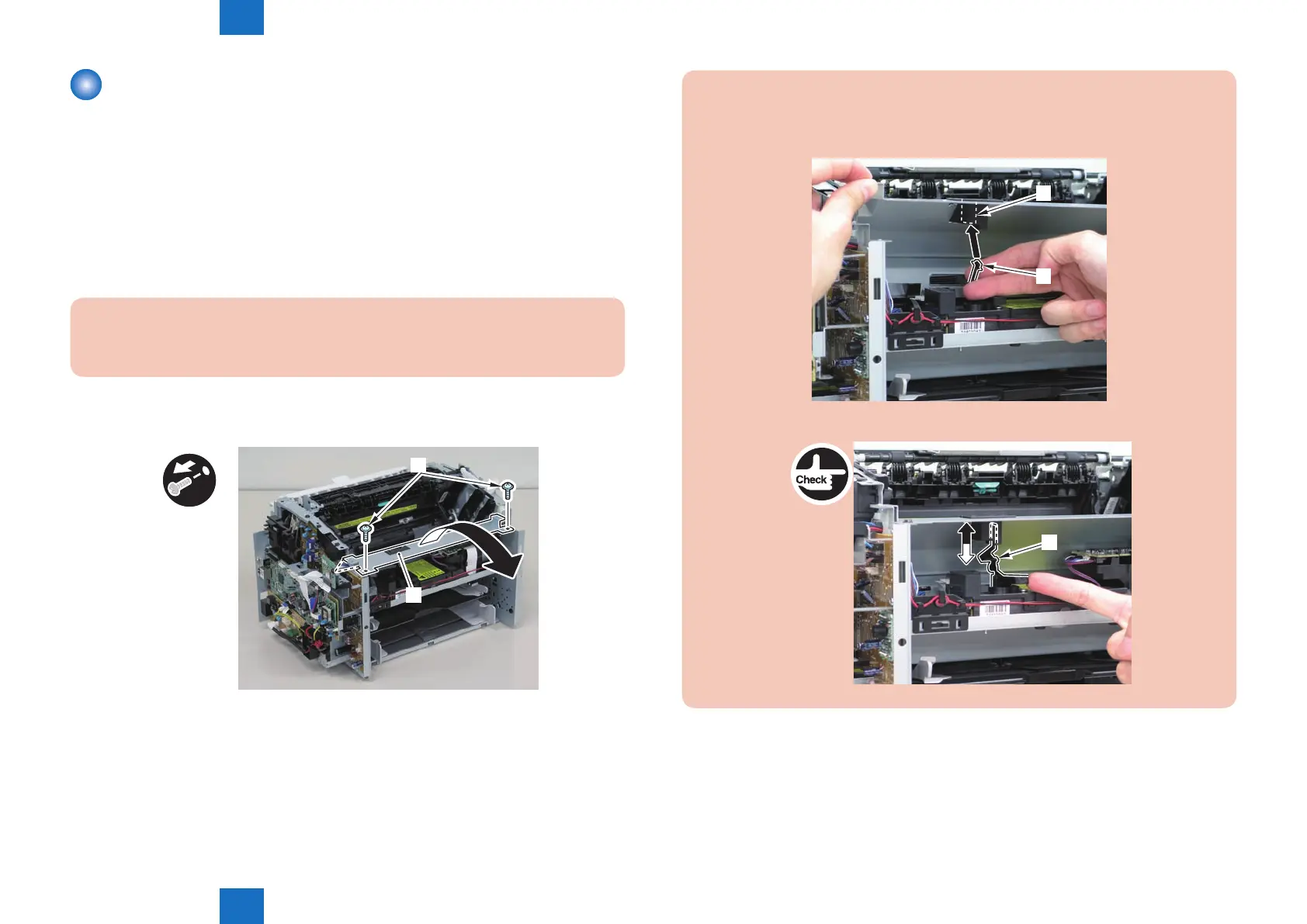

1) Remove the scanner cover [1].
• 2 screws (black TP) [2]
[1]
x2
[2]
F-4-728
Caution:
• When mounting the scanner cover, pass the shutter open/close lever [1] through the
hole [A] in the scanner cover.
[1]
[A]
• Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-729
F-4-730
