Product Overview > Name of Parts > Control Panel > L418S/L410/L190
Product Overview > Name of Parts > Control Panel > L418S/L410/L190
(1) Mode switching keys Press to switch the mode to copy or scan.
(2) [N on 1] key Press to select the setting for printing multiple documents onto
one sheet.
The indicator of selected setting will be lit up and also the item
will be displayed on the LCD.
[2-Sided] key Press to select the setting for printing on both sides of paper.
The indicator of selected setting will be lit up and also the item
will be displayed on the LCD.
(3) [Menu] key Press to specify or register various settings.
[Report] key Press to manually print reports and lists. You can also specify
whether to
report automatically.
[Image Quality] key Press to select the image quality for copy.
(4) [Processing/Data] indicator Blinks during transmission and turns on when the machine has
waiting jobs.
[Error] indicator Blinks when an error occurs.
(5) LCD During normal operation, displays messages and prompts.
When adjusting the settings, displays your selections, text, and
numbers.
[Reset] key Resets the settings.
[Back] key Press to return to the previous screen.
(6) [▲] key Press to scroll up or to increase the value.
[▼] key Press to scroll down or to decrease the value.
[◄] key Press to return to the previous screen, or move the cursor to the
left.
►] key Press to proceed to the next screen, or move the cursor to the
right.
[OK] key Press to conrm an action or setting.
[Status Monitor/Cancel] key Press to view the status of jobs or cancel jobs. You can also
check the status of the machine.
[Paper Settings] key Press to specify paper size and type for the paper cassette.
(7)
Numeric keys ([0]-[9]) Press to enter characters and numbers.
[*] key Press to switch the character entry mode.
[#] key Press to enter symbols.
[Quiet Mode] key Press to reduce noise from the engine of the machine.
[Clear] key Press to delete entered characters and numbers.
[Energy Saver] key
Press to manually set or cancel the Sleep mode. The Energy
Saver indicator lights green while in the sleep mode.
[Stop] key Press to cancel jobs.
[Start] key Press to start copying or scanning.

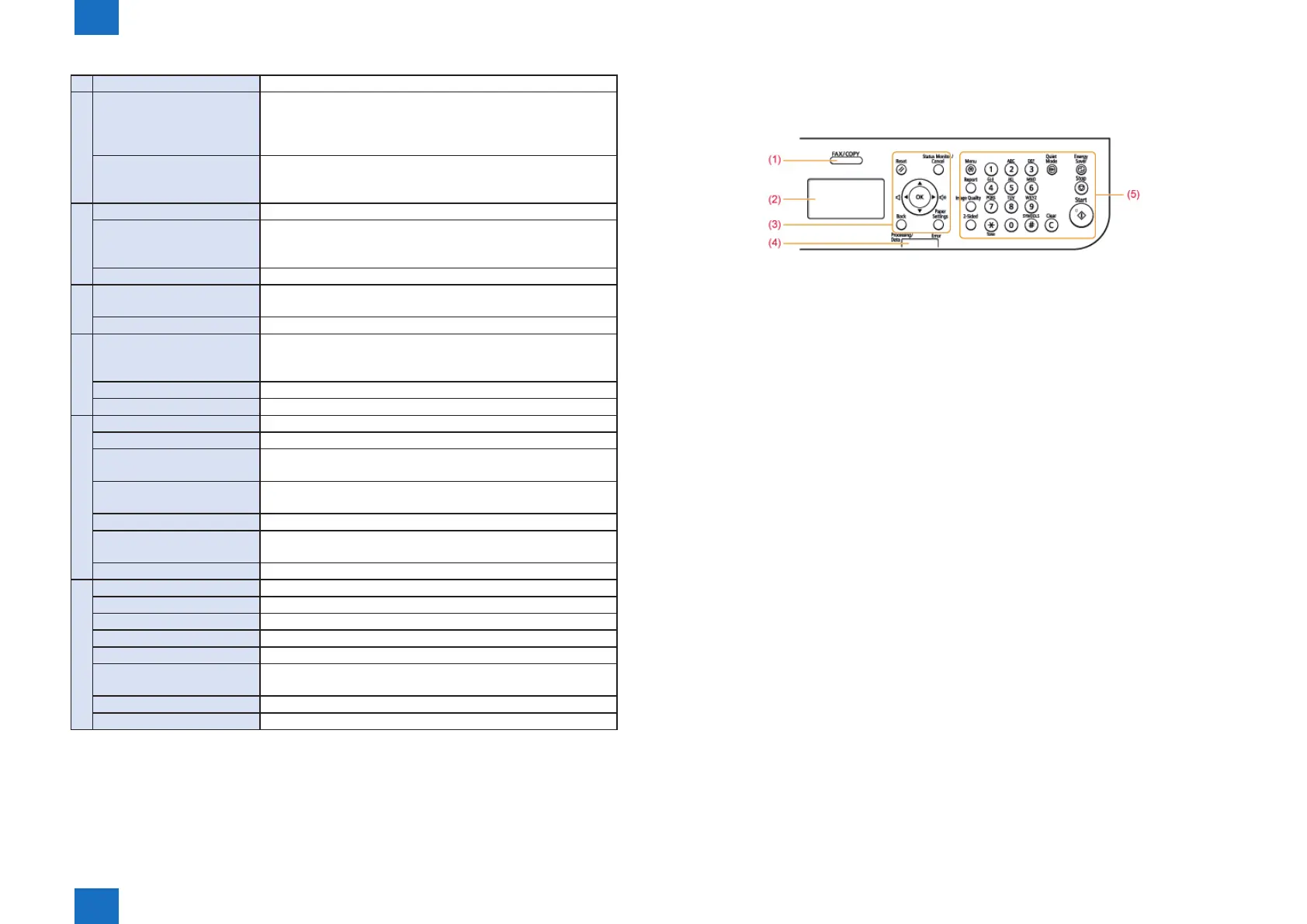

T-1-12
■
L418S/L410/L190
F-1-19
