Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (MF4820d) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (MF4820d) > Procedure

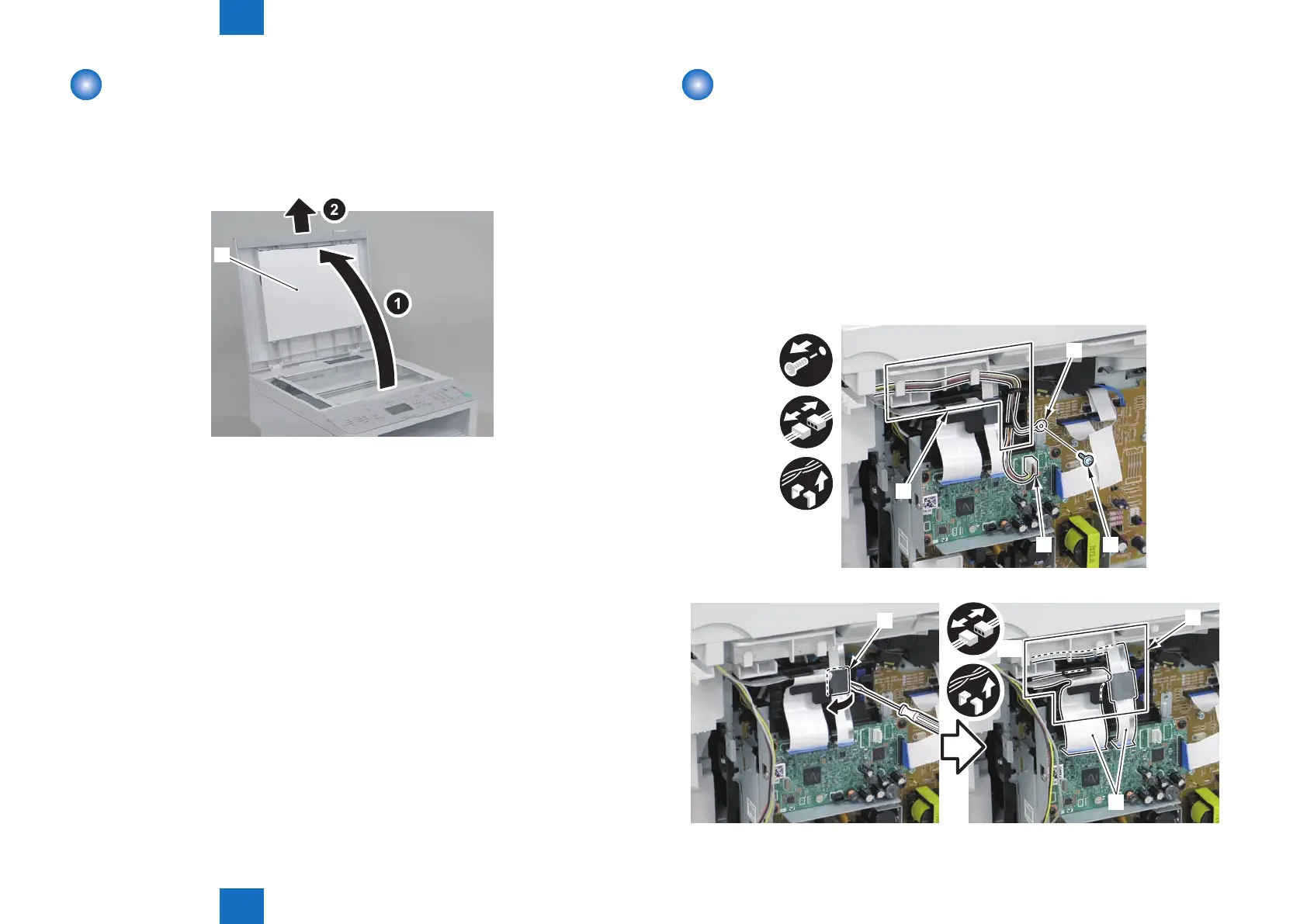

Removing the Copyboard Cover (MF4820d)
■
Procedure
1) Remove the copyboard cover[1]
[1]
F-4-190
Removing the Copyboard Cover and Reader Unit
(MF4820d)
■
Preparation
1) Remove the left cover.
■
Procedure
1) Remove the 1 grounding wires[1].
• 1 screw(black TP)
2) Disconnect the connectors[3], and free the grounding wire and the harnesses from the
harness guide[A].
[1]
[A]
[2]
[3]
3)Remove the ferrite core[1], and disconnect the 2 at cables from the harness guide[A]
[1]
[A]
[2]
x2
F-4-191
F-4-192
