Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Roller Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Roller Unit (L418S/L410/L190) > Procedure

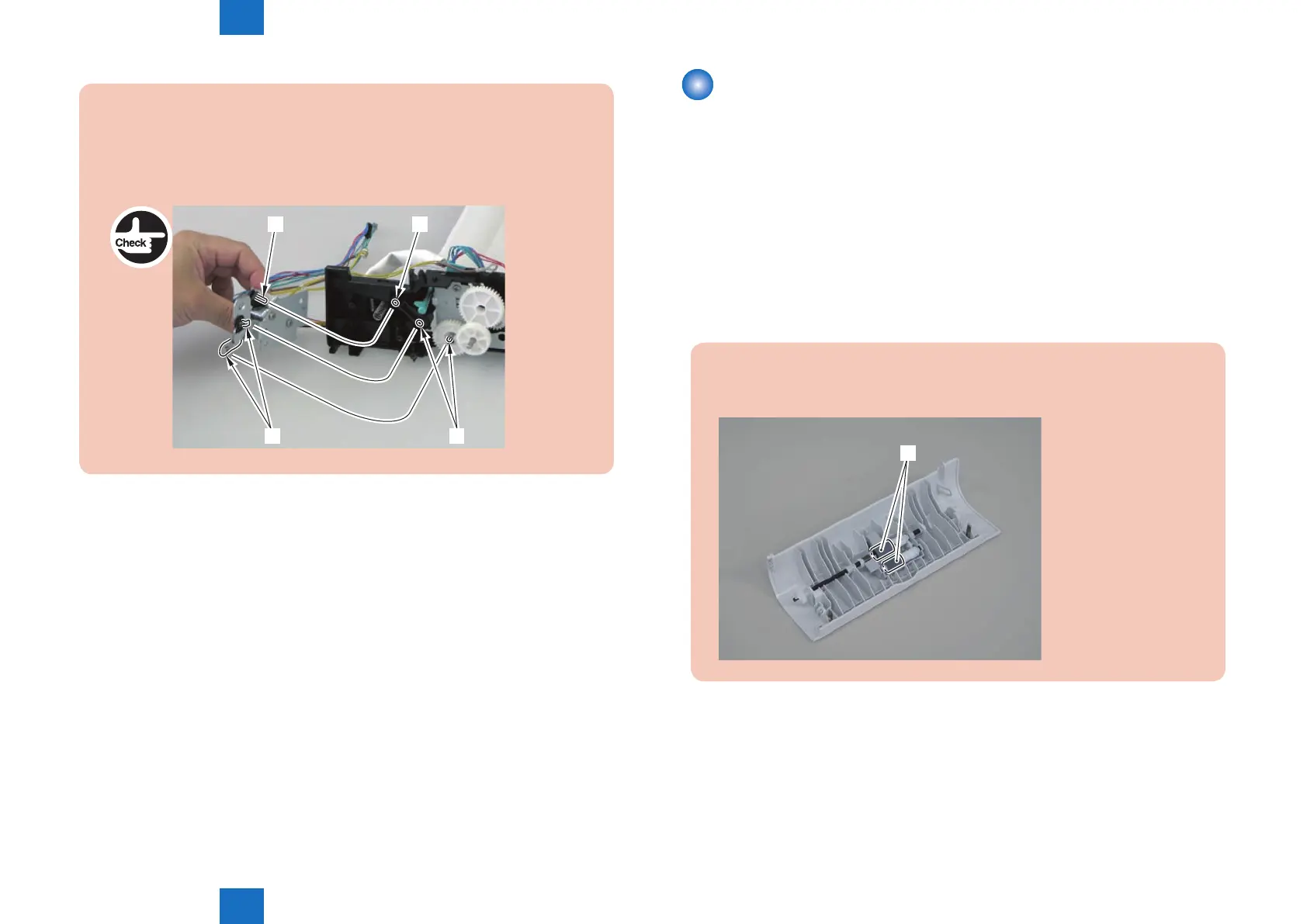

Caution:
When assembling the DADF solenoid unit, be sure to put the solenoid shaft [1]
through the hole [A] on the solenoid arm.
When assembling the DADF solenoid unit, ensure that the 2 DADF pickup unit
shafts [2] and the 2 DADF solenoid unit contact points [B] are in contact.
[1] [A]
[B]
[2]
Removing the DADF Pickup Roller Unit (L418S/L410/
L190)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the pickup unit.
■
Procedure
1)Remove the gear[1],bushing[2],2 e-rings[3] and bushing[4]
Caution:
Do not touch the pickup roller surface[1]
[1]
