Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4890dw/MF4880dw) > Procedure
Removing the Pickup Tray Unit (MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit
7)Remove the separation pad
■
Procedure

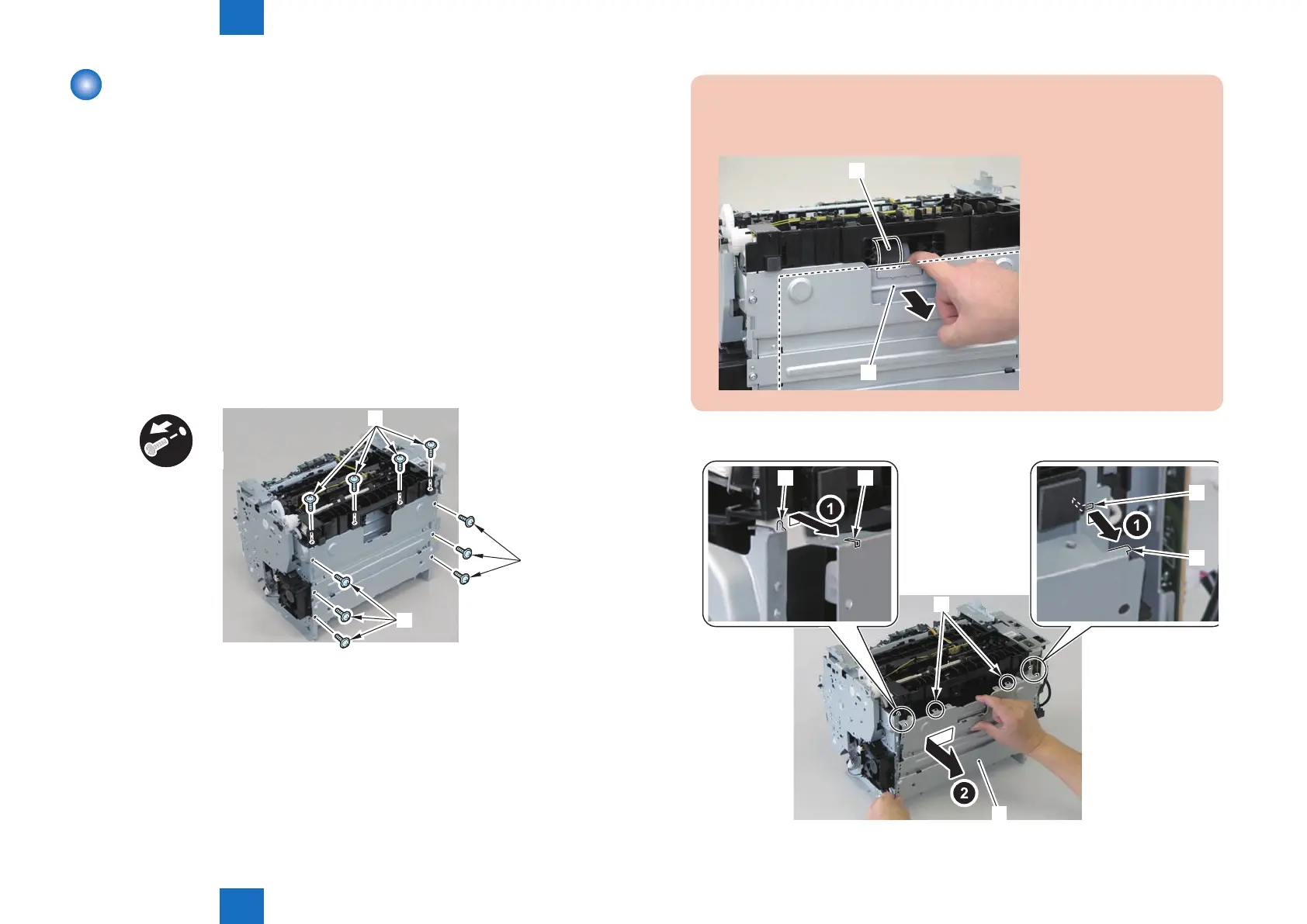

1)Remove the 4 screws(black TP)[1] and 6 screws[2].
x10
[2]
[2]
[1]
2) Remove the pickup tray unit [1].
• 2 boss holes [2]
• 2 hooks [3]
• 2 bosses [4]
F-4-875
Caution:
When assembling/disassembling the pickup tray unit, hold the pickup tray [1] down
to attach/release it.
[1]
[2]
[4]
[1]
[2]
[3]
[2][3]
F-4-876
