Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass(MF4820d) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass(MF4820d) > Procedure
Removing the Copyboard Glass(MF4820d)
■
Preparation
1)Remove the copyboard cover.
2)Remove the control panel unit.
■
Procedure

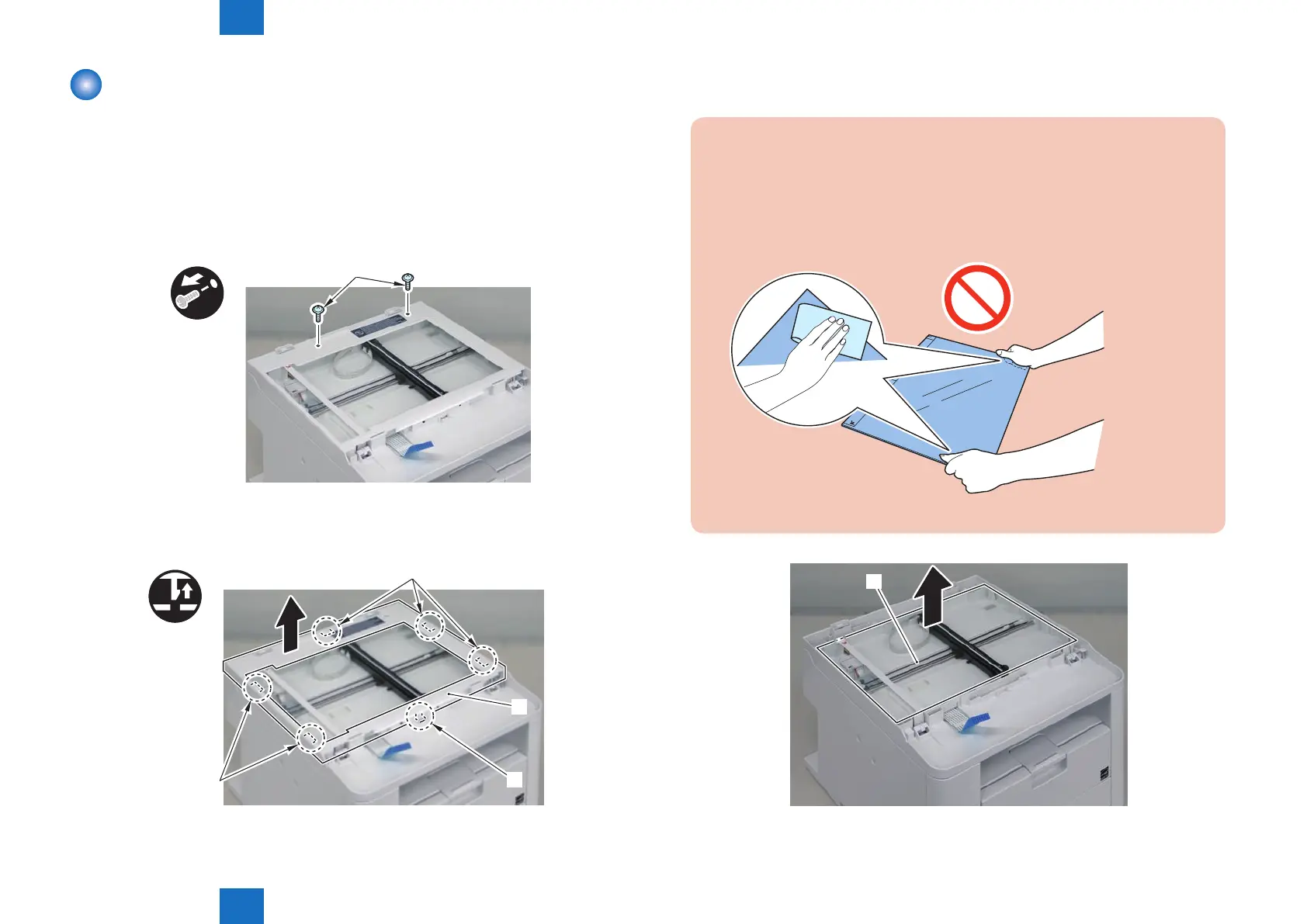

1)Remove the 2 screws[1]
x2
[1]
2)Remove the reader upper cover[1]
• 6 claw[2]
x6
[1]
[2]
[2]
[2]
F-4-194
F-4-195
3)Remove the copyboard glass[1].
Caution.
Place the detached copyboard glass cover on a cloth etc. to avoid damaging the
bottom sheet.
When removing the copyboard glass, take care not to touch the glass surface.
If the surface becomes dirty, clean it with lens-cleaning paper.
[1]
F-4-196
