Disassembly/Assembly > Controller System > Removing the Engine Controller PCB(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Controller System > Removing the Engine Controller PCB(MF4890dw/MF4880dw) > Procedure

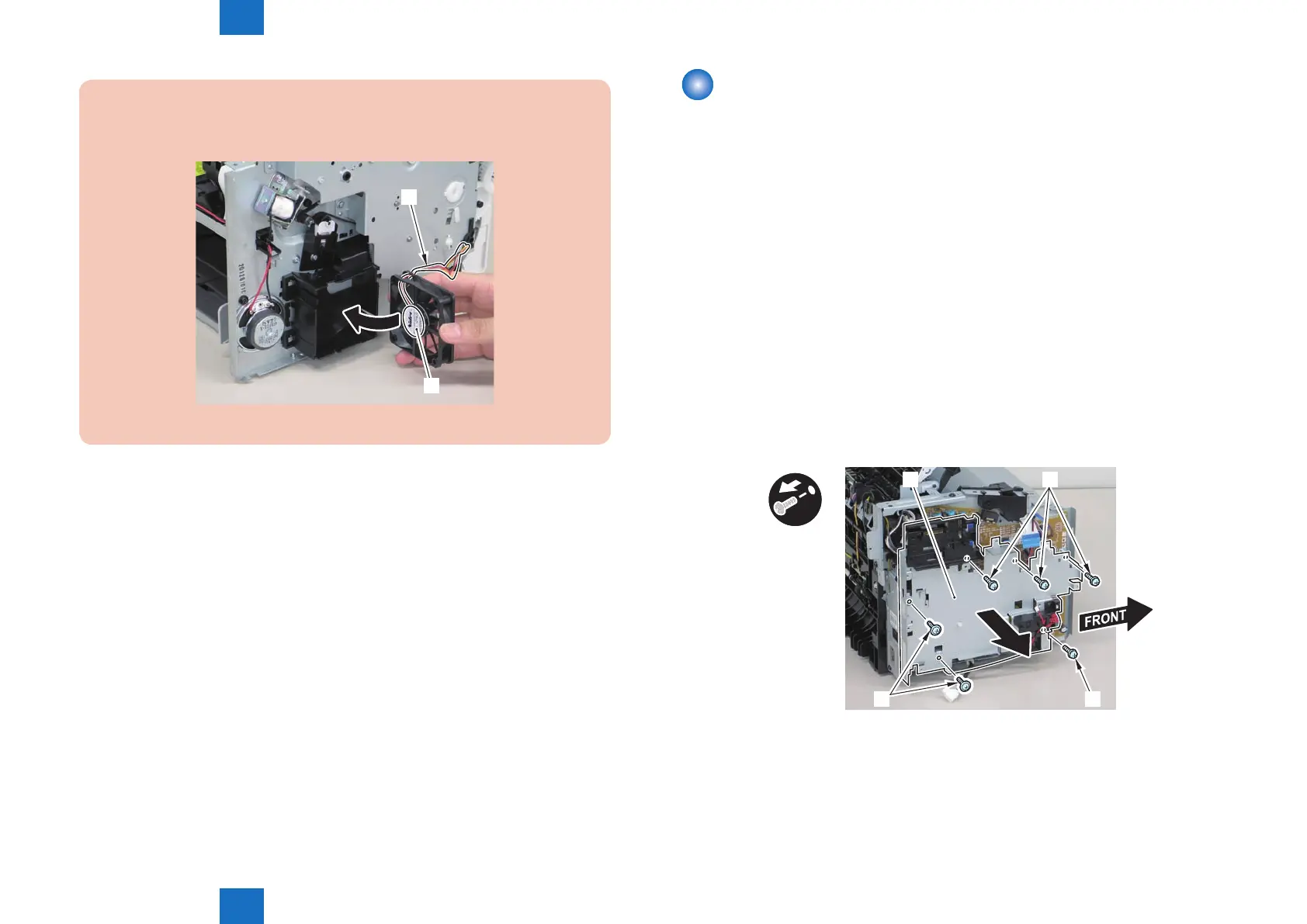

Caution:
When mounting the main fan, attach the harness [2] to the upper-right side of the
fan with the fan label [1] facing inwards.
[1]
[2]
F-4-337
Removing the Engine Controller PCB(MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit.
7)Remove the main controller PCB
8)Remove the FAX NCU PCB
9)Remove the wireless LAN PCB.
■
Procedure
1)Remove the main controller mounting plate[1]
• 1 screw(with washer)[2]
• 1 screw(black TP)[3]
x6
[1] [2]
[3] [2]
F-4-338
To Next Page
